Applicant to aditivities, solvent, liquids one ton barrel, IBC barrel, bulk barrel filling machine.

* explosion-proof level: EXdiaIIBT4(optional);
* automatic correction liquid drop, always follow the target, the filling results out-of-tolerance alarm;
* filling nozzle manufactured SUS304/316;
* will display a prompt a barrel filling is complete, the total weight and number of times, and can be an external computer;
* artificial put barrels pounds on the stage, on the barrel mouth after press the start key can be different filling liquid products;
* use insert filling head (manual regulation), avoid the material fly light on the bucket, affect the outer packing;
* a two-part size materials to ensure the accuracy of automatic filling way;
* start filling automatically deduct weight function, weight of pounds on reset;
*, after the completion of filling machine can only artificial bucket will launch pound;
* if encounter emergency press the emergency stop button to remove the filling;
Ton barrel filling machine basic parameters
* Filling capacity: 1000 kg
* sense of minimum quantity: 100 g
* filling range: 10-250 kg
* filling error: + / - 0.1% (depending on the velocity and pulse power)
* use power: AC220/50 hz
* use air: 0.5 Mpa
* use temperature: - 40 ℃ to 170 ℃

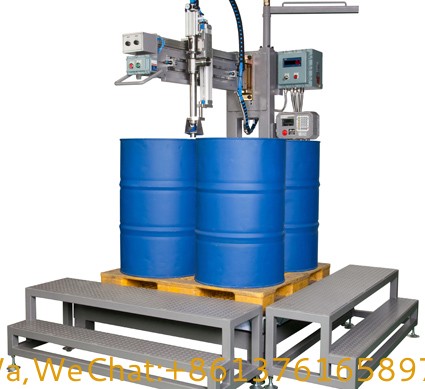

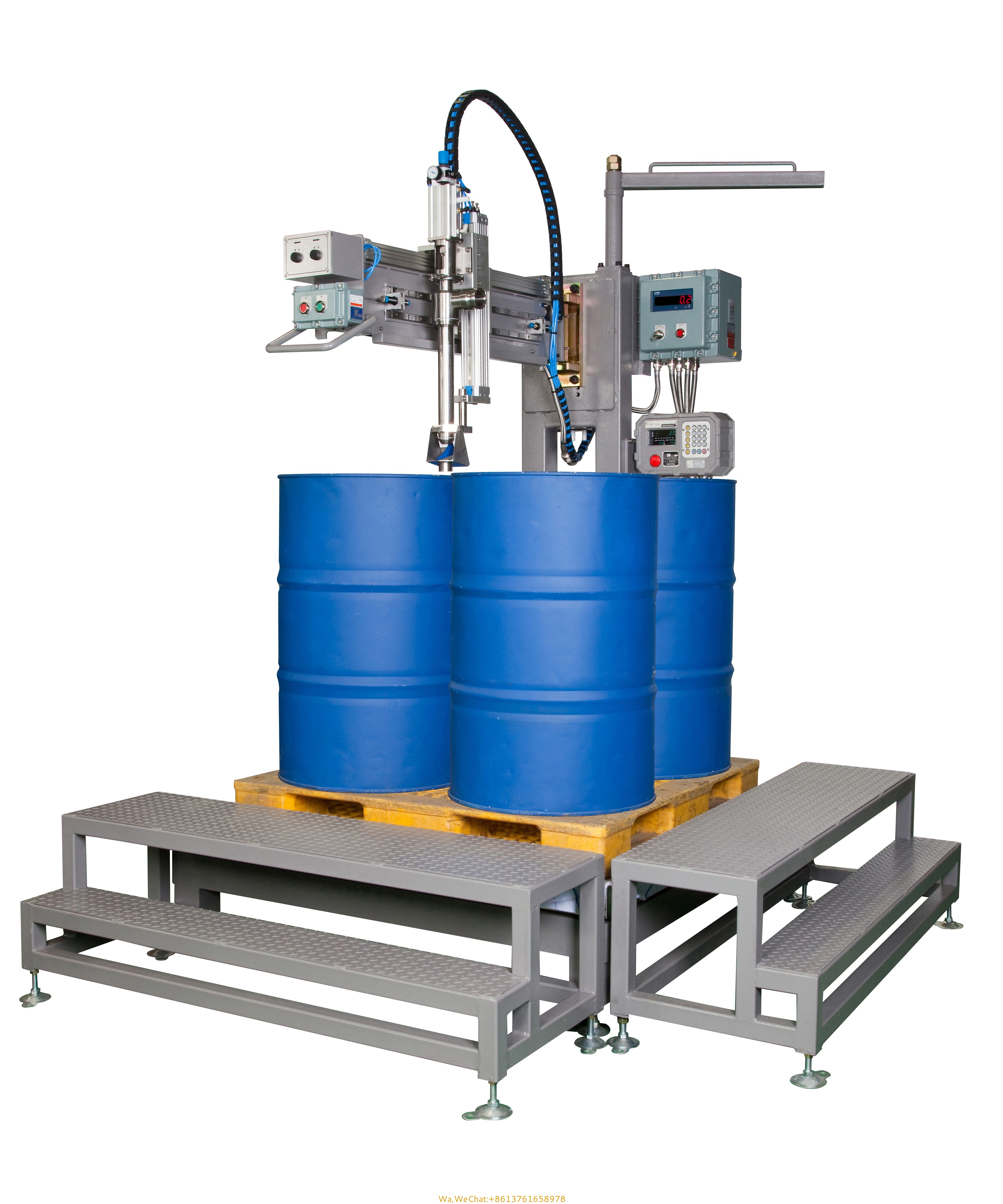

Simple model(only can fill ton barrel)

Complicate model(can fill 208L drums& 1 ton barrel)

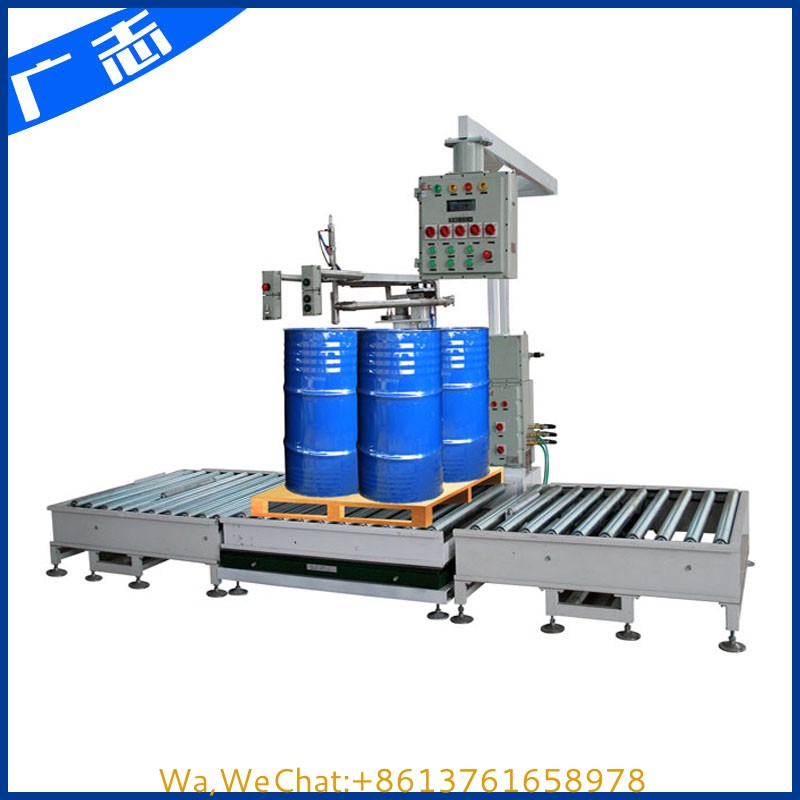

Roller optional:
