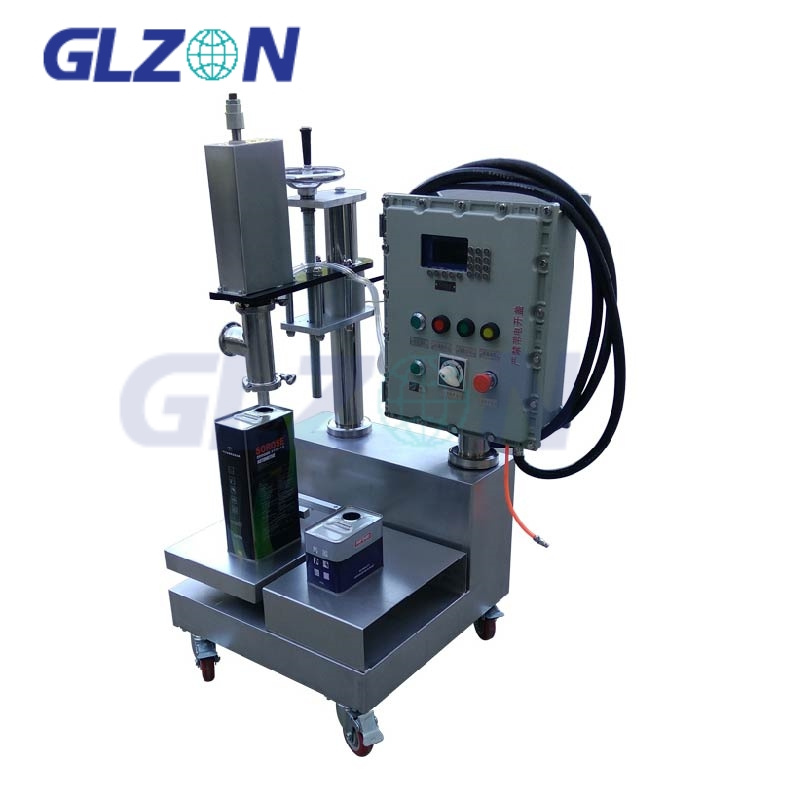

AquaFill AF-1000 SeriesSemi-Automatic 10L Water-Based Paint Filling SystemFoam-Free Precision • 30 Bottles/Hr • ±0.15% Accuracy • EHEDG/FDA Certified • Zero VOC EmissionCore Technical SpecificationsPa
Semi-Automatic 10L Water-Based Paint Filling System
Foam-Free Precision ? 30 Bottles/Hr ? ±0.15% Accuracy ? EHEDG/FDA Certified ? Zero VOC Emission
| Parameter | AF-1010 (Standard) | AF-1020P (Pharma-Grade) | AF-1030H (High-Viscosity) |
|---|---|---|---|
| Capacity | 10L (±0.15%) | 10L (±0.1%) | 10L (±0.2%) |
| Throughput | 30 Bottles/Hr | 28 Bottles/Hr | 25 Bottles/Hr |
| Accuracy | ±0.15% Gravimetric | ±0.1% | ±0.18% |
| Viscosity Range | 50-50,000 cP | 10-30,000 cP | 500-500,000 cP |
| Foam Control | Vacuum Submerged Filling (-0.6bar) | Same + Ultrasonic Defoaming | Coanda Adhesion Nozzle |
| Filling Technology | Servo Piston + Mass Flow Meter | Peristaltic Pump (FDA) | Gear Pump with Pre-Heating |
| Material Contact | 316L SS (Ra<0.8μm) | 316L EP (Ra<0.4μm) | Hardox 500 + Tungsten Carbide |
| Container Compatibility | HDPE/PP Bottles ? Jerrycans ? Pails<br>Lid: Screw Cap ? Press Seal ? Tri-Clamp | USP Containers | UN-Certified Containers |
| Cleanability | CIP 15-min Cycle<br>ATP<5 RLU Validation | SIP/CIP 12-min Cycle | Solvent Purge System |
| Environmental Compliance | Zero VOC Emission<br>? Activated Carbon Adsorption<br>? Closed-Loop System | Same | N? Blanketing (O?<0.1%) |
| Changeover Time | <60s (Tool-Free) | <45s | <75s |
| Power | 220V/50Hz, 2.5kW | 220V/50Hz, 2.2kW | 220V/50Hz, 3.0kW |
| Certifications | CE, EHEDG EL Class I | FDA 21 CFR 175.300 | ISO 9001:2015 |
Performance Validation:
| Paint Type | Viscosity | Foam Height | Industry Standard |
|---|---|---|---|
| Acrylic Latex | 1,200 cP | 0mm | 15-25mm |
| PVA Primer | 800 cP | 0mm | 10-20mm |
| Epoxy Waterborne | 20,000 cP | 0mm | 20-35mm |
| Layer | Technology | Certification |
|---|---|---|
| Primary Barrier | PTFE Bellows Seal | FDA 21 CFR 177.2600 |
| Secondary Defense | -0.6bar Vacuum Hood | EHEDG EL Class I |
| Tertiary Capture | Activated Carbon Bed (99.95% VOC Adsorption) | EPA Method 25 |
Architectural Coatings
| Challenge | Innovation | Performance |
|---|---|---|
| Skin Formation | Nitrogen Blanketing (O?<0.1%) | 0% Surface Skinning |
| Color Consistency | In-line Spectrophotometer | ΔE<0.3 (CIELab) |
| Settling | Pulsed Ultrasonic Agitator | 99.8% Homogeneity |
Automotive Waterborne Paints
ESD Protection:
Cleanability:
| Feature | Specification |
|---|---|
| Sloped Surfaces | 3° Drainage Angle |
| Quick-Release Parts | <30s Component Change |
Food-Grade Packaging
| cGMP Compliance | Technical Solution |
|---|---|
| Material Safety | USP Class VI Certification |
| Data Integrity | 21 CFR Part 11 Audit Trail |
| Cleanability | SIP Validation (121°C/30min) |
1. Manual Bottle Loading → 2. Auto-Nozzle Alignment (±1mm) → 3. Vacuum Submerged Filling (±0.15%) → 4. Ultrasonic Defoaming → 5. Drip-Free Retract → 6. Torque Capping (5-20 N·m) → 7. Weight Verification → 8. Labeling
Cycle Time: 120 seconds/bottle
Precision & Sustainability
? Foam-Free Guarantee: | **Technology**| **Performance**| |-------------------------|------------------------| | Vacuum Submersion| -0.6bar ±0.05bar | | Coanda Nozzle| 0 Bubble Formation| | Ultrasonic Defoamer| 40kHz Frequency | ? Zero-VOC Architecture: 1. 99.95% Carbon Adsorption 2. Closed-Loop Filtration 3. Kalrez?6375 Seals (<0.01mg/m3 Leak) ? Industrial Reliability: - Tungsten Carbide Components (2,200 Hv) - IP66 Washdown Protection - 100,000-Hour MTBF
? EHEDG EL Class I (Certificate #EH-2024-552) ? FDA 21 CFR 175.300 ? ISO 9001:2015
Sherwin-Williams Waterborne Plant:
"After implementing AF-1010:
Output: 18 → 30 Bottles/Hr (+67%)
Foam Waste: 12L/day → 0.2L/day
VOC Emissions: ↓99.8%
ROI Period: 4.5 months"
