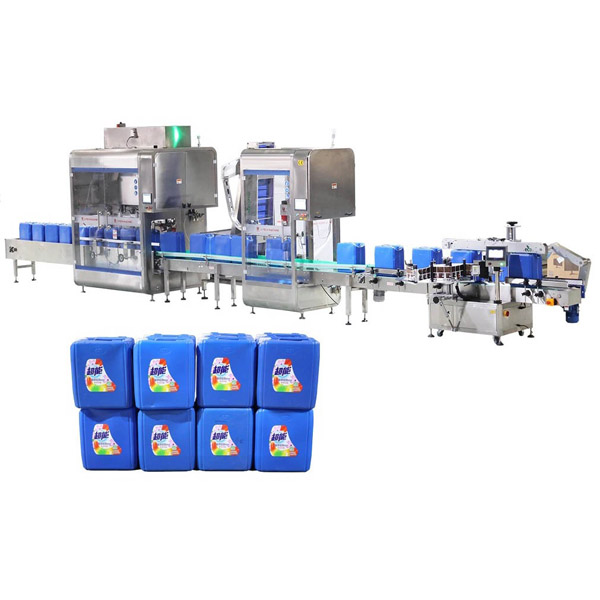

GZM-25KMS 4-Head Automatic Liquid Quantitative Filling machine, Special for 20-25L Drums, High Precision and High Efficiency Filling Equipment

Core Application Scenarios of the Product

• Chemical industry: Quantitative filling of various non-foaming chemical reagents, chemical additives, liquid chemical raw materials, etc. (equipped with SUS304/316 material nozzles, corrosion-resistant and easy to clean);

• Grain and oil industry: Quantitative filling of liquid oils such as edible oil, lubricating oil and industrial oil. The anti-dripping design avoids oil waste and barrel contamination;

• Food industry: Quantitative filling of liquid ingredients for food processing, edible syrup, liquid condiments, etc., complying with food-grade production standards;

• Other industries: Quantitative filling of various non-foaming liquid materials (weight range of 10-30kg), which can flexibly adapt to different specifications of containers.

Product Working Process, One-Click Operation for More Convenience

1. Parameter setting: The operator presets the target filling weight (adjustable freely within 10-30kg) on the equipment according to production needs;

2. Start operation: Press the [Start] button of the equipment and place the empty drum on the empty drum conveyor;

3. Automatic drum feeding and positioning: The conveyor automatically transports the empty drum to the designated position and pushes it to the weighing platform to complete automatic positioning;

4. Automatic filling: The filling head is automatically inserted into the empty drum, the equipment automatically tares the empty drum, then opens the filling valve, and adopts a two-speed (upgradeable to three-speed) filling mode to ensure filling accuracy;

5. Completion of discharging: After reaching the preset filling weight, the filling head is automatically lifted out of the drum mouth, and the anti-dripping device is activated to avoid residual material dripping;

6. Subsequent processes: The conveyor automatically transports the filled drum to the discharge end. The operator manually caps the drum and places it on a pallet to complete the entire filling process.

Basic Product Parameters, Precise and Controllable, Adapting to Diverse Needs

Core System Advantages, Solving Industry Filling Pain Points

• Net weight filling mode: Completely eliminates filling errors caused by tare weight and material specific gravity, ensuring that the weight of each barrel of material is accurate and consistent, and improving product qualification rate;

• Multi-stage automatic filling: Adopts two-speed (upgradeable to three-speed) automatic filling method, fast filling improves efficiency, slow filling ensures precision, balancing high efficiency and accuracy;

• Flexible adjustment and setting: The target filling weight can be freely preset, adapting to the packaging needs of different weight specifications from 10-30kg, with strong versatility;

• Anti-splashing design: Insert-type filling gun, which goes deep into the barrel during filling, avoiding material splashing onto the barrel, reducing material waste and keeping the barrel clean;

• Automatic lifting of filling gun: After reaching the preset filling weight, the filling gun automatically lifts and separates from the barrel mouth, cooperating with the operation process to improve the degree of automation;

• Unique anti-dripping device: Exclusive Visida filling head design, combined with anti-dripping structure, no residual material dripping after filling, avoiding pollution and waste;

• Convenient disassembly, assembly and cleaning: The nozzles and pipelines adopt quick-connect fittings, which are easy to disassemble and assemble, convenient for daily cleaning and maintenance, and comply with hygienic production standards;

• Stable PLC control system: Adopts PLC programming control, safe and reliable operation, low failure rate, reducing equipment downtime and ensuring production continuity;

• One-click simple operation: One-click start throughout the whole process, simple operation process, no professional and technical personnel required, reducing labor training costs, and one person can be on duty for production.

Core Product Value, Helping Enterprises Reduce Costs and Increase Efficiency
