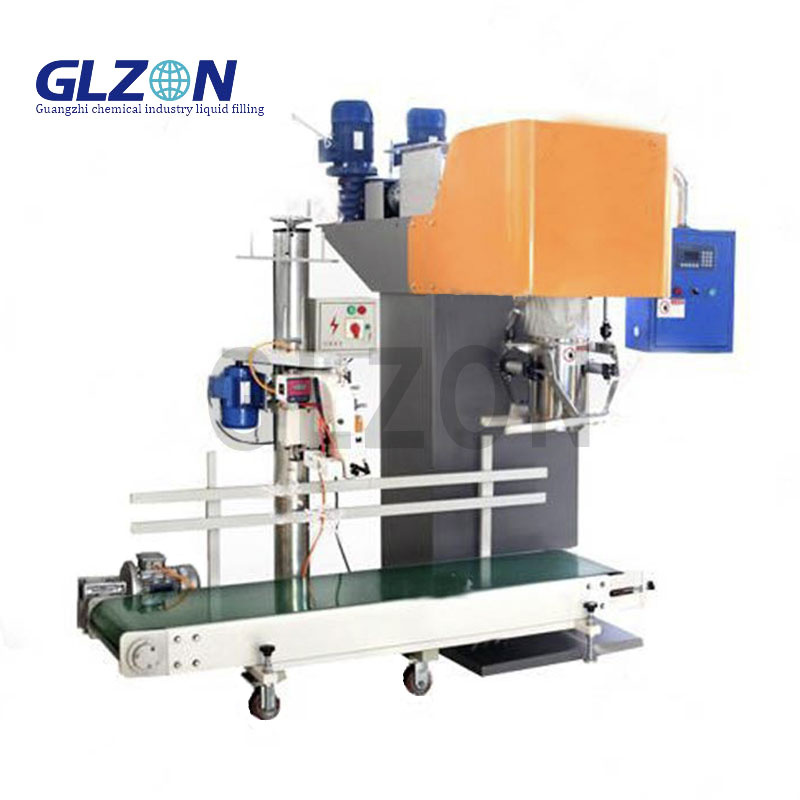

316 Stainless Steel Packing Machine for Chemical Powders and Fine Materials
Corrosion-proof 316L stainless powder packing: ±0.1% accuracy, ATEX Zone 1 certified. <0.1mg/m³ dust emission. Pharma/chemical options.
- Brand： glzon
- Model： GZM-50V
ChemiSteel CS-9000 Series
316L Stainless Steel Chemical Powder Packing System
Corrosion-Proof ? ATEX Zone 1 ? 0.1% Accuracy ? Full CIP Capability
Technical Specifications
| Parameter | CS-9100 (Standard) | CS-9200X (ATEX) | CS-9300P (Pharma Grade) |
|---|---|---|---|
| Material Compatibility | Powders 1-500μm | Same + Explosive Dusts | Same + API/HPAPI |
| Weighing Accuracy | ±0.1% | ±0.15% | ±0.05% |
| Throughput | 25 Bags/Drums per hour | 22 units/hour | 20 units/hour |
| Material Contact | 316L SS (Ra<0.8μm) | 316L SS EP (Ra<0.4μm) | 316L SS EP (Ra<0.2μm) |
| Dust Containment | <0.1mg/m3 (ISO 14644-1 Class 5) | Same | Class 4 |
| Corrosion Resistance | ASTM G48 Method A 0.001mm/yr @ 50°C/40% HCl | Same | Same + Crevice Corrosion Tested |
| Sealing System | Triple-Lip PTFE Gasket + Gas Purge | Double Seal + N? Barrier | Welded Metal Bellows |
| CIP/SIP | 30-min Cycle (HNO3/NaOH) | ATEX Washdown | 21 CFR Part 11 Validated |
| ATEX Compliance | Zone 22 | Zone 1 (1D/2D) | Zone 1/21 |
| Power | 380V/50Hz, 4.5kW | 24VDC Ex ia | 380V/50Hz, 3.8kW |
| Certifications | CE, ISO 9001 | IECEx, ATEX | FDA, EHEDG, GMP |
Core Innovations
1. CorroShield? 316L Architecture
Material Science:
| Environment | Performance | Test Standard |
|---|---|---|
| 40% HCl @ 50°C | 0.001mm/yr | ASTM G31 |
| 30% NaCl Mist | 0g/m2 Weight Loss (500h) | ISO 9227 |
| H?S Sour Gas | No SCC (NACE TM0177) | NACE Method A |
2. ZeroDust? Containment System
| Technology | Function | Performance |
|---|---|---|
| Air Curtain Seal | 0.5m/s Outward Airflow | 99.95% Dust Containment |
| Ionized Air Knife | Static Dissipation (<10? Ω) | Zero Powder Adhesion |
| Pulsed Jet Cleaning | In-situ Filter Regeneration | 0 Downtime Cleaning |
Industry-Specific Engineering
Chemical Manufacturing
| Feature | Specification |
|---|---|
| Acid Halide Handling | Chloride Resistance Monitoring |
| Abrasive Slurries | Tungsten Carbide Wear Plates |
| Cross-Contamination | Dedicated Material Paths |
Pharmaceuticals
Potent Compound Safety:
Containment Level Performance OEB 4/5 <0.1μg/m3 (SMEPAC) API Loss <0.01% per cycle Decontamination:
Lithium Battery Materials
| Challenge | Solution |
|---|---|
| Ni/Co Dust Explosion | ATEX Category 1D |
| Moisture Control | -40°C Dew Point Environment |
| Metal Contamination | Magnetic Traps + 316L SS |
Technical Specifications
| Component | CS-9100 | CS-9200X |
|---|---|---|
| Screw Conveyor | 316L SS Hardened (60 HRC) | Ceramic-Coated 316L (72 HRC) |
| Valves | PTFE-Diaphragm Sealed | Metal Bellows Sealed |
| Filters | 316L Sintered (0.5μm) | Hastelloy C22 Membrane |
| Control System | IP65 Stainless HMI | ATEX Zone 1 Certified |
Certifications
? ATEX 2014/34/EU (Cat. 1D Zone 1) ? FDA 21 CFR 210-211 ? EHEDG Class III ? ISO 14644 Class 5 ? NACE MR0175
Performance Validation
BASF Ludwigshafen Report:
*"After 12 months packing zinc chloride powder:
Corrosion Rate: 0.002mm/yr (vs 0.8mm/yr carbon steel)
Dust Emissions: 5.2mg/m3 → <0.05mg/m3
Product Loss: 1.8% → 0.05%
ROI: 14 months"*
