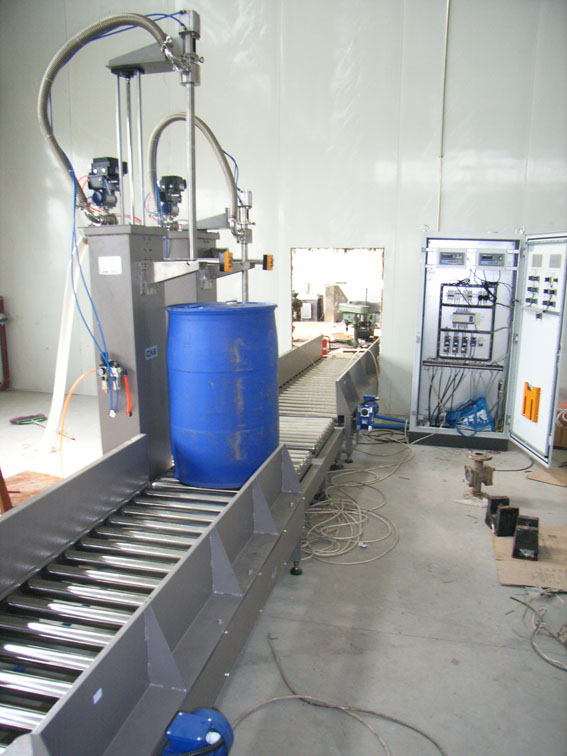

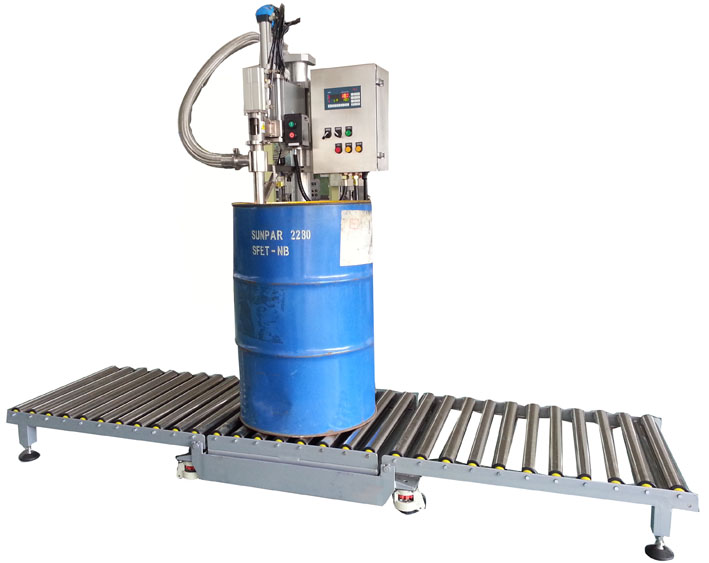

200L plastic pail aditivities filling machinery

The liquid filling machine is a kind of semi-automatic filling machine, USES the filling liquid surface, 200L pail filler suits no bubble or mild foam material.Unique design of the spray gun is easy to operation and fast, precise filling.

Weight adjusting range: 100 ~ 300 kg
When material interface: DN40 material inlet pressure < 0.6 MPa
When filling speed: 1 ~ 2 barrels (200 l) per minute (size 1.5 ", ensure material flow 280 l/min)
When filling accuracy: 0.2 on the Richter scale are unlikely
When gun structure: contact part of the material is 316, 316 l stainless steel material, the rest of the material is 304 stainless steel, carbon steel, etc
When air supply: pressure 0.5 + / - 0.1 Mp, consumption of 10 m3 / h, 8 ㎜ trachea quick connectors
When the power supply: 220 VAC (15% ~ + 15%), 50 hz
When the operation is simple, easy to install

Type filling pause
1, single barrel filling (200 l barrels single barrel filling)
2, 4 barrel filling (200 l barrels 4 barrel filling only)
3, tons of barrel filling (IBC ton barrels)
More than 4, filling head (many product categories, spear cannot mix configuration)
5, under liquid surface filling (for material flow generates a bubble situation configuration)
6, explosion-proof requirements (order specifies that the Ann, flame-proof)
Performance characteristics:
1, through the keyboard to modify products filling weight value and the related parameters.
2, with double speed filling to the fastest speed and the highest accuracy.
3, bull barrels, when the filling gun not aligned barrel, can protect the filling machine and avoid vessel injury.
4, filling height is adjustable, to adapt to the height of the different containers.
5, positioning device to help vessel registration.
6, rapid change spray gun head, adapt to different caliber of the vessel.
7, anti-skid device positioning device, to avoid container moving when filling.
8, contact with the liquid part adopts 304 or 316 stainless steel, sealers adopt ptfe (preservative).

Scope of application:
Mixer vans used lubricating oil, grease, diesel oil, engine oil, grease, vehicle gear oil, Marine oil, motorcycle oil;
Industrial lubricants, grease: hydraulic oil, emulsified oil, gear oil, compressor oil, vacuum pump oil, transmission oil, electric oil, rubber oil, rail oil, heat conduction oil, frozen oil, chain oil, food grade lubricants, bearing oil, transformer oil, high temperature shock absorber oil, lubricating oil, general oil, knitting oil, damping oil, metal conditioning agent, equipment with oil and other industrial oil, etc.;
Additives: antioxidant anticorrosion agent, anti-wear extreme pressure agent, catalyst, antioxidant, adhesive agent, thickening agent, anti-rust agent, blood coagulation agent, demulsifier, metal passivator, viscosity index improver, defoaming anti-foam agent, compound agent, PH regulator, extreme pressure agent, clean dispersants and other additives, etc.;
Base oil: mineral base oil, synthetic base oil, vegetable base oil;
Metal cutting fluid: water-soluble cutting fluid, oily volatile stamping oil, cutting fluid, other cutting fluid;
Related instrument: lubricating oil analysis instruments, test instrument, the simulation platform, etc.
Pieces of lubricating oil production, packaging, filling and label printing, harmonic evaluation test equipment and instruments, full excellent lubrication technology, evaluation method and quality control technology, etc.;
Lubrication system and equipment: lubrication system design, development, maintenance and related processing equipment of form a complete set of environmental protection, etc.;
Maintenance products: antifreeze, brake fluid, coolant, brake oil, antiwear agent, clean fuel additives, detergents, brightening agent, cleaning agent, glass antifoggant repairing adhesive, glass, automotive paint, paint coating, net carbon deposition, refrigerant, snow, preservative agent, synergist, improver, bare, low-temperature start agent, adhesive, sealant, such as car maintenance supplies outside the door.

APPLICABLE BARREL TYPE

COMPANY PROFILE

Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.

We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.

Company Certificate

Our office and workshop

Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance

This is a partial

service for us

in China.

Over 30 years of experience, every time we produce in

Shanghai, our friends can visit our factory at any time.

Brand components

We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.

Our service

Complete solution provided

Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.

Duty after death

Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.

Technology group

We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.

Successful collaboration

Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.

packge and delivery

Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
