Drum & IBC filling machine
The Drum and IBC filling machine is a versatile and semiautomatic weight filling equipment. It is suitable for filling liquid and viscous products directly on pallet in a wide range of containers. In
- Brand：
- Model：
Product Introduction:
Shanghai Guangzhi specializes in designing and manufacturing high-precision, robust filling machines for industrial containers. Our Drum Filling Machines and IBC (Intermediate Bulk Container) Filling Machines are engineered to deliver exceptional accuracy, speed, and safety for diverse industries including chemicals, pharmaceuticals, food & beverage, lubricants, and paints. Whether handling hazardous chemicals requiring stringent safety features or high-viscosity products demanding specialized handling, our solutions enhance production efficiency, minimize waste, and ensure operator safety. We offer both semi-automatic and fully automatic configurations to seamlessly integrate into your production line.
Product Overview:
Guangzhi's filling machines are designed for versatility, reliability, and ease of operation. Key features include:
High Precision Filling: Utilizing advanced flow meters (mass or volumetric) or servo-driven piston technology for exceptional filling accuracy, minimizing product giveaway and ensuring consistency.
Robust Construction: Manufactured primarily from high-grade stainless steel (AISI 304/316) and other corrosion-resistant materials for longevity, especially crucial in harsh chemical environments.
Enhanced Safety: Integrated safety features like grounding systems (for flammable liquids), drip trays, vapor recovery options, splash guards, emergency stop buttons, and safety interlocks (e.g., container presence detection).
Operator Friendly: Intuitive touchscreen HMIs (Human-Machine Interfaces), ergonomic height adjustment, easy-to-clean surfaces, and straightforward changeover between container sizes or products.
Flexibility: Capable of handling a wide range of liquid viscosities (from solvents to pastes), container types (open-head, tight-head drums, various IBC designs), and filling volumes. Quick nozzle change options.
Automation Ready: Designed for seamless integration into automated production lines (conveyors, palletizers, labeling systems) via PLC control. Options include automatic container handling (lifting, lowering, positioning).
Compliance Focus: Designed to meet relevant international safety and quality standards (CE Marking standard, ATEX optional for explosive atmospheres, GMP where applicable).
Key Specifications:
Table 1: General Specifications Comparison
| Feature | Drum Filling Machine | IBC Filling Machine | Notes |
|---|---|---|---|
| Target Containers | Standard 55-gallon (200L) Drums (Open/Tight Head) | IBC Totes (1000L, 1250L common) | Adaptable to other sizes (e.g., 30L pails, 1000L drums) via tooling. |
| Typical Filling Range | 5L - 250L | 200L - 1500L | Configurable based on scale/flow meter capacity. |
| Filling Accuracy | ± 0.1% to ± 0.5% of setpoint | ± 0.1% to ± 0.5% of setpoint | Depends on technology (Coriolis mass flow highest accuracy). |
| Filling Speed | 10 - 40 drums/hour (Semi-Auto) 20-80+ drums/hour (Full Auto) | 5 - 20 IBCs/hour (Semi-Auto) 15-40+ IBCs/hour (Full Auto) | Speed highly dependent on product viscosity, fill volume, automation level. |
| Filling Technology | Gravimetric (Load Cells), Volumetric (Flow Meters - Turbine, PD, Mag), Piston Filler (High Viscosity) | Gravimetric (Load Cells), Volumetric (Flow Meters - Turbine, PD, Mag) | Gravimetric preferred for highest accuracy; Flow meters for speed/cost. |
| Nozzle Type | Single or Dual Head; Spring-loaded, Flush Mount, Snorkel (Dip Tube) | Single or Dual Head; Large Diameter, Flush Mount, Snorkel | Snorkel reduces foaming/splashing; Flush mount for clean fills. |
| Material Contact | AISI 304 / 316L Stainless Steel, PTFE, EPDM, Viton seals | AISI 304 / 316L Stainless Steel, PTFE, EPDM, Viton seals | Material selected based on product compatibility. |
| Control System | PLC with Touchscreen HMI | PLC with Touchscreen HMI | Recipe storage, data logging, user management. |
| Safety Features | Grounding Clamps, Drip Tray, Vapor Recovery (Opt.), Safety Light Curtains (Auto), E-Stop | Grounding Clamps, Drip Tray, Vapor Recovery (Opt.), Safety Light Curtains (Auto), E-Stop | Essential for flammable/volatile/toxic products. |
| Power Supply | 220V/380V AC, 50/60Hz, 3-Phase | 220V/380V AC, 50/60Hz, 3-Phase | Standard industrial power. |
| Air Supply | 5-7 bar, Clean & Dry Compressed Air Required | 5-7 bar, Clean & Dry Compressed Air Required | For pneumatic valves and actuators. |
Table 2: Common Options & Features
| Category | Option/Feature | Applicable To | Benefit |
|---|---|---|---|
| Automation | Automatic Drum/IBC Handling (Lift/Lower/Position/Clamp) | Both | Enables fully automated filling lines, reduces labor. |
| Automation | Conveyor Integration (Infeed/Outfeed) | Both | Streamlines material flow. |
| Automation | Automatic Lid Handling (Placement/Sealing) | Drums (Tight Head) | Full automation for sealed drums. |
| Filling | Dual-Lane Filling | Both | Doubles throughput on a single machine footprint. |
| Filling | CIP (Clean-in-Place) System | Both (Food/Pharma) | Automated cleaning, reduces downtime, ensures hygiene. |
| Filling | Pre/Post-Purge (Nitrogen/Inert Gas) | Both | Prevents oxidation, essential for sensitive products. |
| Control | Recipe Management (100s of recipes) | Both | Quick changeover between products/volumes. |
| Control | Data Logging & Connectivity (Ethernet, OPC, Printer) | Both | Traceability, integration with plant MES/ERP systems. |
| Control | Batching Controller Interface | Both | For adding precise amounts of multiple components. |
| Safety | ATEX Certification (Zone 1/21, Zone 2/22) | Both | Mandatory for filling flammable products in explosive atmospheres. |
| Safety | Enhanced Vapor Recovery Systems | Both (Solvents) | Captures harmful VOCs, improves workplace safety, environmental compliance. |
| Accessories | Checkweigher Integration | Both | Post-fill weight verification. |
| Accessories | Labeling/Coding Printer | Both | Direct application of batch/lot info post-fill. |

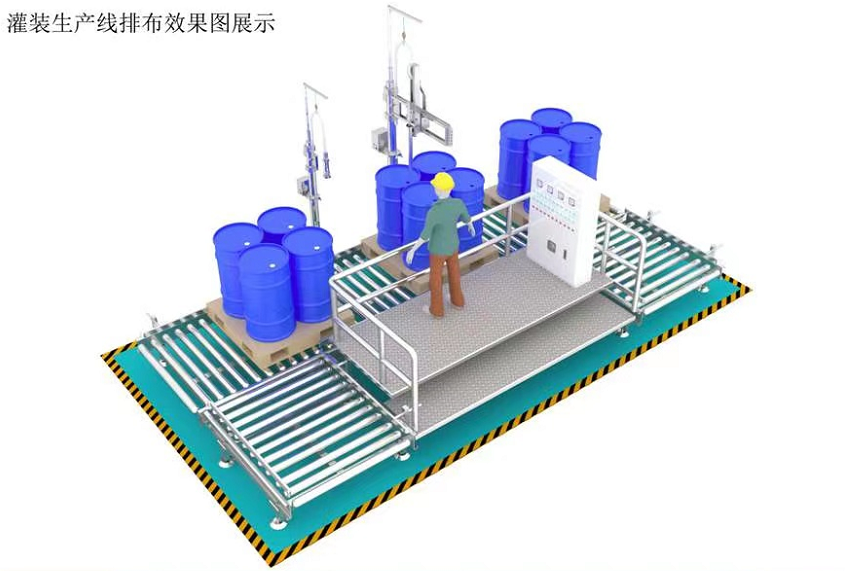

Operational Flow (Typical Semi-Automatic):
Positioning: Operator manually places empty drum/IBC onto filling platform/scales. Platform may auto-adjust height. Grounding clamp attached.
Selection: Operator selects the desired product recipe on the HMI.
Initiation: Operator presses start button (often via foot pedal for hands-free).
Filling: Machine automatically lowers the filling head/nozzle into the container. Filling begins based on the chosen technology (metering, weight-based). Filling speed may be controlled (ramp-up/down).
Completion & Retraction: Upon reaching the precise target weight/volume, filling stops. The nozzle retracts automatically, minimizing drips.
Removal: Operator removes the filled container and positions the next empty one.
Quality Assurance:
Shanghai Guangzhi machines are manufactured under strict quality control procedures. We utilize high-quality components and perform comprehensive factory acceptance testing (FAT) to ensure performance and reliability. Standard warranty is provided, with comprehensive after-sales support available.
Why Choose Shanghai Guangzhi?
Engineered Precision: Unmatched filling accuracy reduces costly product giveaway.
Built to Last: Robust stainless-steel construction for demanding industrial environments.
Safety First: Comprehensive safety features designed for operator and environmental protection.
Tailored Solutions: Flexibility to configure machines to your specific product, container, and production requirements.
Global Support: Experienced team providing installation, training, and responsive after-sales service.
APPLICABLE BARREL TYPE
