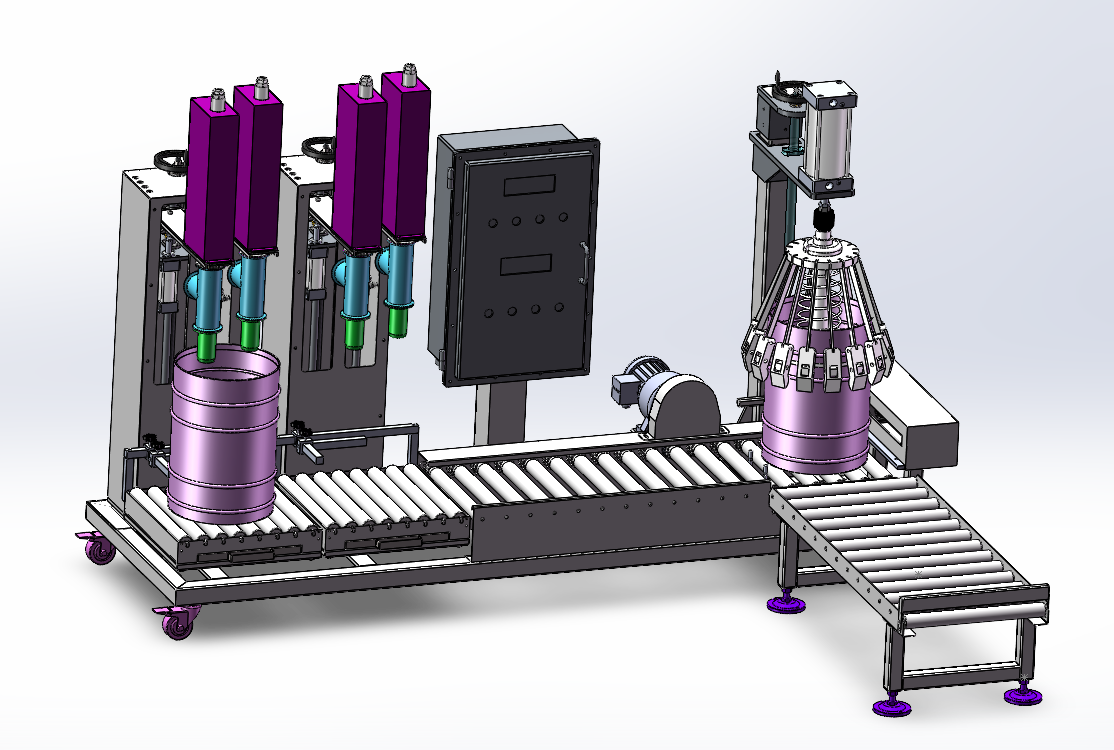

Coating Filling machine
Coating Filling machineBasic parametersMaximum weighing capacity: 40kg;Display division value: 10g;Filling error: ± 10g;Filling speed: approximately 300-350 barrels per hour/(25 liters depending on fe
- Brand：
- Model：
Product Introduction
The GF-CFM Series Coating Filling Machine is engineered for high-accuracy, high-speed filling of viscous coatings, paints, adhesives, and chemical products. Designed to meet stringent industrial standards, it integrates advanced servo technology, customizable filling heads, and intelligent control systems to ensure consistency, minimize waste, and maximize production efficiency. Ideal for manufacturers in the paint, chemical, and construction industries, this machine supports containers ranging from 100ml cans to 20L pails with exceptional precision (±0.5%). Its robust stainless-steel construction and user-friendly interface make it a reliable solution for both batch and continuous production lines.
Product Overview
Key Features:
High Precision & Speed:
Servo-driven piston filling with repeat accuracy of ±0.5%.
Filling capacity: 100ml – 20L (adjustable in 1ml increments).
Speed: Up to 45 containers/minute (dependent on viscosity and volume).
Versatile Material Handling:
Compatible with coatings, sealants, epoxy resins, solvent-based paints, and water-based emulsions.
Viscosity range: 5,000 – 50,000 cP (higher with optional heating).
Durable Construction:
Contact parts: 316L stainless steel (standard) or PTFE-coated for corrosive chemicals.
Frame: Powder-coated carbon steel or stainless steel (optional).
Smart Control & Customization:
10-inch HMI Touchscreen with recipe storage, production tracking, and fault diagnostics.
Modular design supports 1–16 filling heads, rotary or inline configurations.
Optional add-ons: Nitrogen blanketing, drying tunnels, capping stations, and conveyor integration.
Compliance & Safety:
CE, ISO 9001 certified.
Explosion-proof version (ATEX) available for solvent-based coatings.
Emergency stop, splash guards, and ventilation interfaces.
Technical Specifications Table
| Parameter | Specification | Options |
|---|---|---|
| Filling Range | 100ml – 20L | Customizable |
| Accuracy | ±0.5% of set volume | ±0.3% (high-precision upgrade) |
| Speed | 15–45 containers/min | Speed varies with viscosity/volume |
| Viscosity Range | 5,000 – 50,000 cP | Heating jacket (up to 100,000 cP) |
| Power Supply | 220V/380V AC, 50/60Hz, 3-phase | 110V/480V upon request |
| Air Pressure | 0.6–0.8 MPa | Built-in regulator |
| Material Contact | 316L SS, PTFE, or Hastelloy? | Customized upon request |
| Control System | PLC + 10" HMI (multi-language) | IoT connectivity (Industry 4.0) |
| Filling Heads | 1–16 | Rotary or linear layout |
| Machine Dimensions | 1500×1000×1800mm (base model) | Scalable for production lines |
Applications Table
| Industry | Typical Products Filled | Special Requirements Supported |
|---|---|---|
| Paints & Coatings | Water-based paints, solvent coatings, primers, varnishes, wood stains | Solvent recovery, explosion-proof design |
| Chemicals | Adhesives, sealants, epoxy resins, polyurethanes, lubricants, industrial coatings | Corrosion-resistant materials, nitrogen purge |
| Construction | Caulks, putties, grouts, joint compounds, tile adhesives | High-viscosity pumping, anti-clogging |
| Automotive | Anti-rust coatings, underbody sealants, OEM finishes | Precision filling (≤±0.5%), cleanroom-ready |
| Marine & Protective | Anti-fouling paints, marine coatings, corrosion inhibitors | Salt-spray-resistant components |
Why Choose GF-CFM Series?
? Reduced Waste: Precise volume control cuts product loss by up to 8%.
? Flexible Production: Quick-changeover design for batches of 50–10,000+ units.
? Low Maintenance: Self-lubricating seals, accessible components, and modular parts.
? Global Support: 24/7 technical assistance, spare parts logistics, and on-site training.
Let me know if you need a PDF version, brochures, or specific configurations (e.g., for explosive atmospheres, sterile filling)!
APPLICABLE BARREL TYPE
