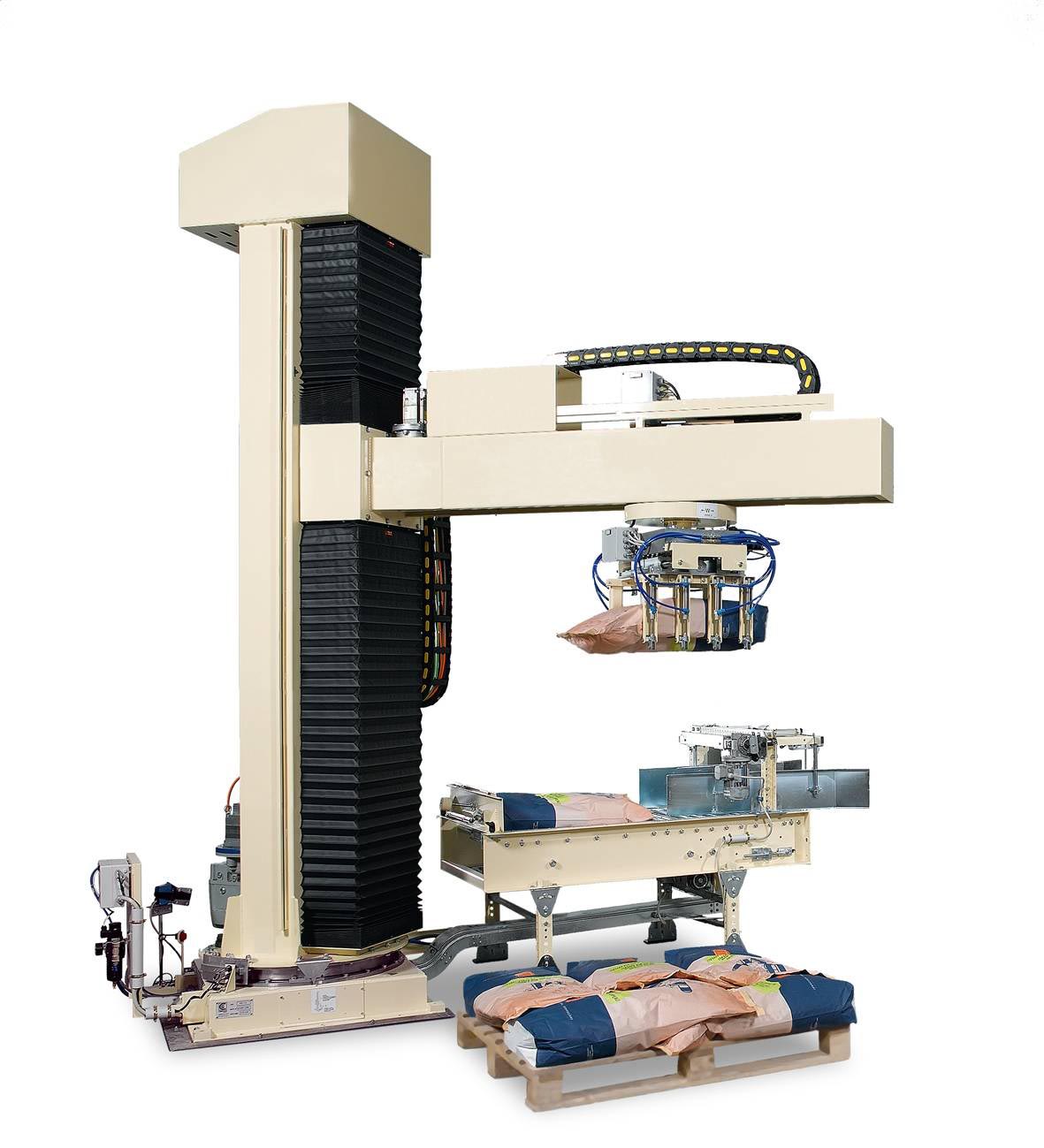

Robotic Servo PalletizerEquipment Introduction:Coordinate palletizing can replace the tedious and repetitive labor of human operations to achieve fully automated production of machinery. It can operat
| Parameter | Standard Model | High-Speed Model | Standard Reference |
|---|---|---|---|
| Max. Payload Capacity | 1000 kg | 800 kg | ISO 8373:2021 |
| Cycle Time (Standard Layer) | 12 cycles/min | 18 cycles/min | ISO 9283:2022 |
| Position Accuracy | ±0.05 mm | ±0.08 mm | ISO 9283:2022 |
| Repeatability | ±0.02 mm | ±0.03 mm | ISO 9283:2022 |
| Pallet Size Compatibility | 1200×1000 mm to 1600×1400 mm | ISO 6780:2020 | |
| Ambient Temperature Range | -10°C to +50°C | IEC 60068-2-1 |
2.1 Robotic Manipulator
Structure: 6-axis articulated arm with carbon fiber reinforcement
Reach: 3100 mm (standard) / 4000 mm (extended)
Servo Motors: Direct-drive torque motors (0.001° resolution)
Protection: IP67 rated (washdown-ready)
2.2 Servo-Driven End Effectors
| Type | Technical Specification | Application Focus |
|---|---|---|
| Multi-Product Gripper | 24 independently controlled vacuum circuits | Mixed SKU palletizing |
| Force-Controlled Clamp | 1-25 kN adjustable grip (±0.1% accuracy) | Deformable packaging |
| Hybrid Tool | Vacuum + mechanical combination | Drums/boxes hybrid lines |
2.3 Precision Conveyance
Infeed System: Servo-driven roller conveyor (±0.5mm positioning)
Pallet Handling: Automated pallet dispenser with vision verification
| Characteristic | Specification | Compliance |
|---|---|---|
| Power Consumption (Peak) | 28 kW | IEC 61800-9-2 IE4 |
| Regenerative Energy Recovery | 25% energy reduction | ISO 50001:2018 |
| Noise Emission | ≤65 dB(A) @ 1m | ISO 4871:2019 |
| Vibration Level | <2.5 mm/s RMS | ISO 10816-3 |
4.1 Motion Control Architecture
Main Controller: Beckhoff CX2040 with TwinCAT 3
Servo Drives: EtherCAT communication (≤100 μs cycle time)
Real-time Performance:
Path following error: <0.1 mm
Jerk control: 5000 m/s3
4.2 Vision Guidance
3D Vision System: Time-of-flight camera (0.1mm depth resolution)
AI Algorithms:
Deformed package recognition
Predictive load stabilization
Self-optimizing layer patterns
| Metric | GZ-RSP1000 | Industry Average |
|---|---|---|
| Palletizing Efficiency | 98.5% | 92-95% |
| Product Damage Rate | ≤0.01% | 0.3-0.8% |
| Changeover Time | <90 sec | 15-30 min |
| MTBF (Robotic Arm) | 60,000 hours | 40,000 hours |
6.1 Integrated Safety Systems
Collision Detection: 6-axis torque monitoring (±1 Nm sensitivity)
Safety Controller: SIL 3/PLe certified (IEC 62061/ISO 13849)
Protected Zones: 3D LiDAR scanner (Type 3 per IEC 61496)
6.2 Global Certifications
| Region | Certification Standards |
|---|---|
| Global | ISO 10218-1/2, ANSI/RIA R15.06-2020 |
| EU | CE, EMC 2014/30/EU, MD 2006/42/EC |
| North America | UL 1740, NRTL (cCSAus) |
| Explosive Areas | ATEX II 2G Ex h IIC T4 |
Dynamic Load Analysis Report (FEM 1.001:2018)
Cycle Time Verification Video (ISO 9283 test protocol)
Safety Validation Package (ISO 13849 PL e documentation)
3D Simulation Models (Process Simulate format)
