Automatic 200L drum filling machine with submerged anti-foam technology. Explosion-proof offers $\le 0.1\%$ accuracy for chemicals & solvents. Features SUS304/316 construction and 35-50 drums/hr speed. Request a quote!

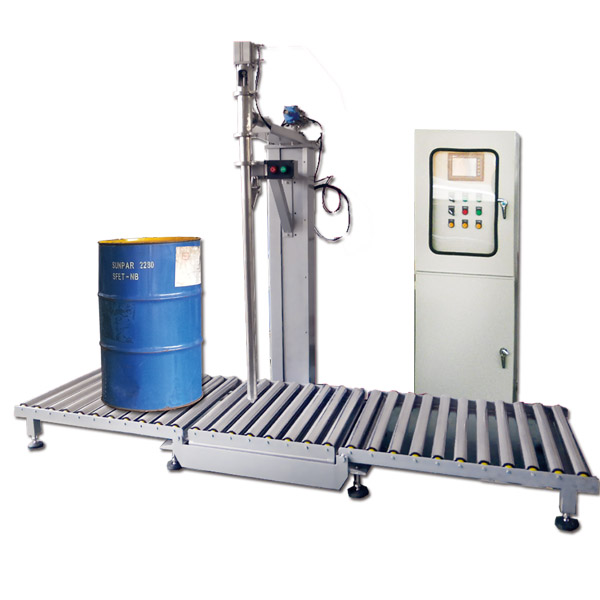

In the industrial chemical and oil sectors, packaging large volumes safely and accurately is a primary challenge. Our 200L Drum Filling Machine (Model V5-300BE) is a high-precision, automatic system specifically engineered for the quantitative filling of foaming liquids. Whether you are handling solvents, lubricants, or volatile chemicals, this 200L Drum Filling Equipment provides the safety of explosion-proof technology combined with the efficiency of submerged, anti-foam filling.
Foaming is a common issue when filling 200-liter containers at high speeds. Our Automatic 200L Drum Filling Machine utilizes an under-liquid-level filling method (Submerged Filling). By inserting the gun head to the bottom of the drum and rising as the liquid level increases, the system effectively eliminates surface turbulence and foam generation.
High-Precision Quantitative Accuracy: Equipped with a high-sensitivity load cell, this 200L Drum Filling Scale ensures a filling error of $\le 0.1\%$, significantly reducing product waste.
Explosion-Proof Safety: The Explosion-Proof 200L Drum Filling Machine is designed for hazardous environments, featuring a PLC-controlled system that ensures stable operation in volatile atmospheres.
Intelligent Workflow: With the "no-barrel, no-filling" safety check and automatic tare weight removal, the system guarantees that every 200L drum is filled to the exact net weight.
Durable Construction: The gun head and pipelines are crafted from SUS304 Stainless Steel (with SUS316 options), providing excellent resistance to corrosion from chemicals and solvents.
The following parameters highlight the industrial-grade performance of our 200L Drum Filling Machine.
| Feature | Technical Specification |
| Primary Keyword | 200L Drum Filling Machine |
| Model (Explosion-proof) | V5-300BE |
| Filling Method | Submerged / Under-liquid-level (Anti-Foam) |
| Max Weighing Capacity | $300\text{kg}$ |
| Filling Range | $10 - 300\text{kg}$ |
| Filling Error | $\le 0.1\%$ |
| Filling Speed | $35 - 50$ barrels / hour |
| Gun Head Material | SUS304 Stainless Steel (Optional SUS316) |
| Applicable Container | $\le \Phi 600 \times \text{h}1000\text{mm}$ (Standard 200L Drum) |
| Control System | PLC (Programmable Logic Controller) |
| Power Supply | AC220V / 50Hz |
| Operating Temperature | $-10^\circ\text{C}$ to $50^\circ\text{C}$ |
Our Quantitative 200L Drum Filling Machine is packed with features designed for 24/7 industrial production:
Dual-Speed Filling: Employs a two-stage filling process (Fast/Slow) to maximize speed while maintaining extreme accuracy at the finish point.
Formula Memory: Store up to 30 sets of filling formulas, allowing for rapid changeovers between different liquid products or drum sizes.
Automatic Drip Collection: Integrated drip tray prevents liquid from contaminating the drum surface or the warehouse floor after the gun head rises.
Net/Gross Weight Selection: Flexibility to fill based on total weight or pure product weight depending on your logistics requirements.
This 200L Drum Filling Machine is the preferred choice for industries dealing with:
Chemicals: Solvents, adhesives, and cleaning agents.
Oils & Energy: Lubricants, engine oils, and fuel additives.
Food & Pharma: Bulk liquid ingredients requiring hygienic SUS316 contact parts.
To create a fully automated 200L Drum Packaging Line, we offer optional peripherals including:
Feed Pumps & Return Valves: For consistent material pressure.
Automatic Conveyor Systems: Heavy-duty roller tables for seamless drum transport.
Pneumatic Cap Screwers: For high-speed sealing post-filling.
Maximize your production safety and accuracy with the industry-leading 200L Drum Filling Machine. Contact our engineering team today for a custom site design.
