1.This machine adoptPLC control systemcombine withweight systemto control all machine.2.Usefixed flow pipelineto set parameter.3.Adopt large flow qualityto control toreach approaching numerical( the s

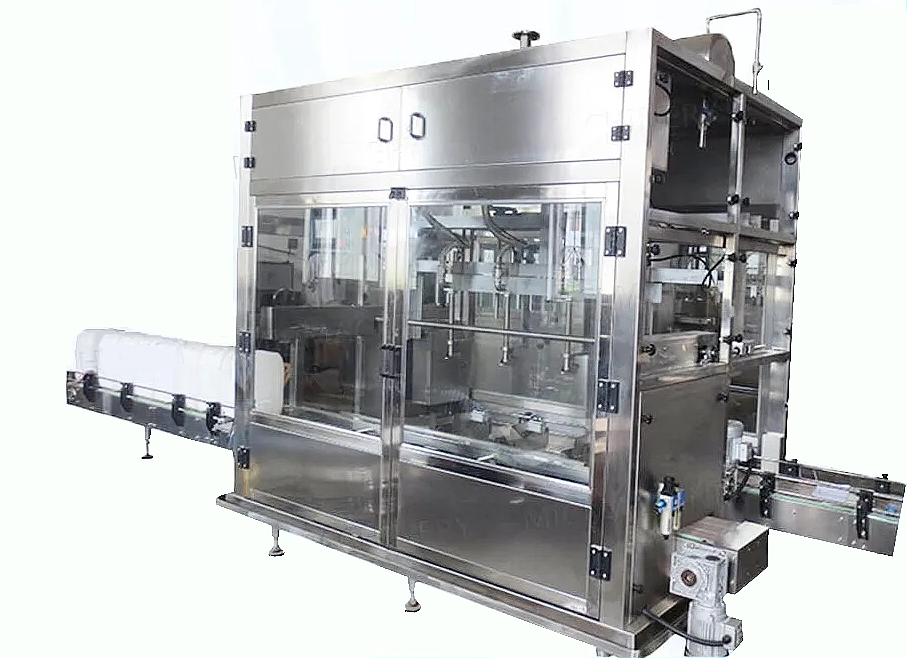

Precision Grease & Butter Weighing Filling System
±0.05% Gravimetric Accuracy ? 50-1,000,000 cP ? Heated Path ? Zero-Residual
| Parameter | BM-5100 (Food Grade) | BM-5200X (Industrial) | BM-5300H (High-Temp) |
|---|---|---|---|
| Capacity | 1-20kg (±0.05%) | 1-20kg (±0.08%) | 1-20kg (±0.06%) |
| Throughput | 200 Drums/Hour | 180 Drums/Hour | 160 Drums/Hour |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.06% |
| Viscosity Range | 50,000-1,000,000 cP | 100,000-2,000,000 cP | 500-800,000 cP @ 150°C |
| Filling Technology | Heated Screw Auger + Dual Load Cells | Same + Pressure Compensator | High-Temp Piston |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | Titanium Gr.12 |
| Heating System | 40-80°C (±0.5°C) | 40-80°C (±1°C) | 50-150°C (±0.3°C) |
| Residual Control | Teflon Scraper + Vacuum Suction (<0.05ml) | Same | Ceramic Wiper System (<0.01ml) |
| Drip-Free System | Coanda Adhesion Nozzle | Spring-Loaded Retract | Laser-Cut Capillary Break |
| Changeover Time | <90s (Tool-Free) | <100s | <85s |
| Power | 380V/50Hz, 7.2kW | 380V/50Hz, 8.5kW | 380V/50Hz, 10kW |
| Cleanability | CIP 20-min Cycle | Solvent Purge System | High-Pressure Steam |
| Certifications | EHEDG/FDA/USDA | ATEX Zone 1/SIL-2 | API 607/ISO 6743 |
Metrology Advantages:
| Feature | BM-5100 Performance | Industry Standard |
|---|---|---|
| Resolution | 0.5g @ 20kg | 2-5g |
| Temp Stability | ±0.0008%/°C (ASTM E74) | ±0.02%/°C |
| Vibration Immunity | >98% (ISO 10816-3) | 70-85% |
| Viscosity | Filling Mode | Flow Rate | Precision |
|---|---|---|---|
| <300,000 cP | Heated Gravity Flow | 5kg/min | ±0.07% |
| 300k-800k cP | Servo-Driven Auger | 3kg/min | ±0.05% |
| >800k cP | Pulsed Piston | 2kg/min | ±0.09% |
Food-Grade Butter/Grease (BM-5100)
| Feature | Certification |
|---|---|
| EHEDG EL Class I | Ra<0.4μm Surface |
| USDA Organic | Non-GMO Material Path |
| Allergen Control | Dedicated CIP Circuits |
Industrial Lubricants (BM-5200X)
Extreme Pressure Compatibility:
| Additive | Material Solution |
|---|---|
| Molybdenum Disulfide | Tungsten Carbide Path |
| Zinc Dialkyldithiophosphate | Kalrez?6375 Seals |
Explosion Safety:
High-Temp Greases (BM-5300H)
| Component | Specification |
|---|---|
| 150°C Continuous | Titanium Path + Ceramic Insulation |
| Thermal Stability | ±0.3°C PID Control |
| Silicon-Free | 0ppm Contamination Guarantee |
10" HMI with GreaseOS?
AI-Driven Features:
Predictive Maintenance:
| Component | Alert Threshold |
|---|---|
| Screw Wear | Torque >120% Baseline |
| Seal Degradation | Friction >8N |
Quality Sentinel:
| Anomaly | Action |
|---|---|
| Density Shift >0.5% | Auto-Calibration |
| Temp Variance >1°C | Flow Rate Adjustment |
? FDA 21 CFR 110/117 (BM-5100) ? ATEX 2014/34/EU Zone 1 (BM-5200X) ? ISO 6743-9 (BM-5300H) ? EHEDG EL Class I ? SIL-2 (IEC 61508)
1. Drum Positioning → 2. Path Heating (40-80°C) → 3. Tare Weighing (±0.01%) → 4. Submerged Filling (±0.05%) → 5. Teflon Wall Scraping → 6. Vacuum Suction (<0.05ml Residual) → 7. Coanda Nozzle Retraction → 8. Weight Verification
Cycle Time: 18 seconds/drum
Shell Lubricants Report:
*"After 12 months using BM-5200X:
Accuracy: ±0.28% → ±0.06%
Grease Waste: 4.5% → 0.07% ($380k/year saved)
Downtime: 8% → 0.9%
ROI: 6 months"*
Precision Engineering:
? Gravimetric Superiority: - Dual Load Cells (0.05% OIML R60 Class 0.5) - Air Buoyancy Compensation (ISO 8655) - 100Hz Real-Time Weight Sampling ? Zero-Residual Architecture: | **Technology**| **Performance**| |-------------------------|-------------------------| | Teflon Scraper | 99.98% Product Recovery | | Vacuum Suction | -0.8bar Residual Removal | | Coanda Nozzle| Adhesion Flow Design| ? Extreme Viscosity Handling: - 2 Million cP Capability - Auto-Temp Control (±0.5 cP/°C) - Shear Rate Optimization (50-5000 s?1)
APPLICABLE BARREL TYPE
