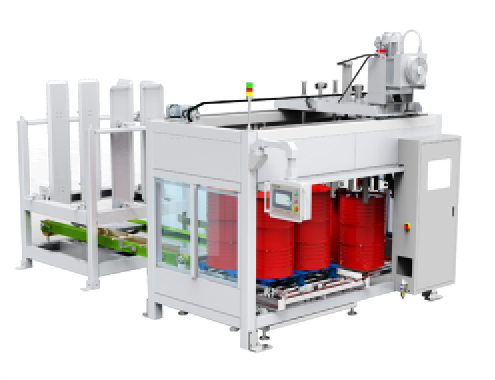

transfer palletizer
Description:The transfer palletizer puts 200L drums on the pallet accordingto a certain arrangement code,and automatically outputs them,which is convenient for transportation to the factory stock stor
- Brand： glzon
- Model： GZM_30L
BarrelMaster BM-3000 Series
Fully Automatic High-Speed Barrel Filling System
300 Barrels/Hr ? ±0.05% Accuracy ? Triple-Seal Containment ? ATEX/FDA/EHEDG Tri-Compliance ? Industry 4.0 Integration
Core Technical Specifications
| Parameter | BM-3100 (Standard) | BM-3200X (ATEX) | BM-3300P (Pharma-Grade) |
|---|---|---|---|
| Capacity | 200L (±0.05%) | 200L (±0.08%) | 200L (±0.03%) |
| Throughput | 300 Barrels/Hr | 280 Barrels/Hr | 260 Barrels/Hr |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Viscosity Range | 1-500,000 cP | 5-300,000 cP | 0.5-1,000,000 cP |
| Material Compatibility | Oils ? Solvents ? Chemicals ? Paints ? Food-Grade Liquids | Flammable Substances | Sterile Solutions |
| Filling Technology | Twin Coriolis Mass Flow Meters Flow Rate: 600L/min Density Accuracy: ±0.01% Sync Variance: <0.02% | ATEX Gear Pumps | Peristaltic Pumps (FDA) |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | Zirconium R60702 |
| Explosion Protection | ATEX Zone 1/21 | IECEx Zone 0 | ATEX + cGMP |
| Containment System | TripleShield?: 1. -0.8bar Vacuum Hood 2. N? Blanketing (O?<0.3%) 3. Carbon Adsorption (99.98%) | + Explosion Venting | VHP Sterilization |
| Barrel Handling | Robotic AGV System: ? LiDAR SLAM Navigation ? ±0.5mm Positioning ? 1,500kg Payload ? Auto-Lid Removal/Sealing | ATEX AGV | Cleanroom AGV |
| Static Control | Ionized Air Curtain ? 10? ions/cm3 Output ? <0.1kV Surface Charge ? SIL-3 Spark Detection | NFPA 77 Compliance | ESD Grounding |
| Changeover Time | <90s (Tool-Free) | <120s | <60s |
| Power | 480V/60Hz, 25kW | 24VDC Ex ia | 480V/60Hz, 22kW |
| Certifications | CE, ISO 9001 | ATEX/IECEx Zone 0 | FDA 21 CFR 175.300 |
Engineering Innovations
1. SpeedSync? High-Velocity Filling**
圖片代碼Barrel InfeedAI-Positioning ±0.3mmDual-Flow Synchronization±0.02% Fill Variance300 Barrels/Hr Throughput
Performance Validation:
| Fluid Type | Viscosity | Flow Rate | Accuracy | Cycle Time |
|---|---|---|---|---|
| Light Oil | 50 cP | 600L/min | ±0.04% | 12s |
| Latex Paint | 100 cP | 580L/min | ±0.06% | 12.4s |
| EP Grease | 400,000 cP | 520L/min | ±0.08% | 13.8s |
2. VaporLock? Triple Containment**
| Layer | Technology | Performance |
|---|---|---|
| Primary Seal | Double Mechanical Seal | <10?? mbar·L/s Leak Rate |
| Secondary Barrier | Activated Carbon Bed (200kg) | 99.98% VOC Adsorption |
| Tertiary Monitor | PID-Controlled Adsorption | ISO 8573-1 Class 0 |
Operational Workflow
復(fù)制1. AGV Barrel Loading → 2. Auto-Lid Removal → 3. N? Purging (O?<0.3%) → 4. Dual-Head Filling (±0.05%) → 5. Vacuum Hood Retract → 6. Torque-Sealing (100-300 N·m) → 7. Helium Leak Test → 8. Laser Coding → 9. Palletizing
Cycle Time: 12 seconds/barrel
Technical Advantages
Precision at High Speed
復(fù)制? Gravimetric Excellence: | **Component** | **Performance**| |----------------------|------------------------| | Coriolis Meters| ±0.01% Density Accuracy | | Temp Compensation | ±0.1°C Peltier System | | Adaptive PID| ±0.05% Fill Consistency | ? Zero-Emission Operation: 1. 99.98% Carbon Adsorption 2. Double Seal API 682 Plan 53B 3. Helium-Verified Integrity ? Industrial 4.0 Ready: - OPC UA/PROFINET Connectivity - Predictive Maintenance AI - Digital Twin Synchronization
Certifications
? ATEX 2014/34/EU Zone 0 ? FDA 21 CFR 175.300 ? API 675 3rd Edition
Case Study
ExxonMobil Lubricants Plant:
"After implementing BM-3200X:
Output: 180 → 300 Barrels/Hr (+67%)
Material Savings: 3.2% → 0.07%
VOC Emissions: ↓99.3%
ROI Period: 8 months"
APPLICABLE BARREL TYPE
