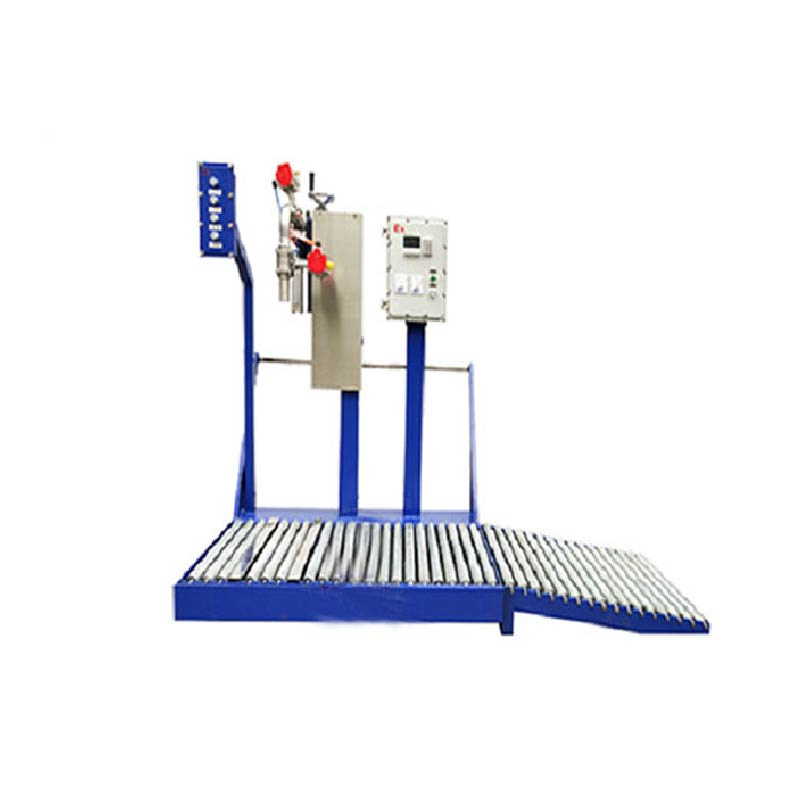

ChemiFill Pro CF-200 SeriesSemi-Automatic 200L Liquid Filling System for Daily ChemicalsPrecision Engineered for Cosmetics • Detergents • Sanitizers • ±0.15% Accuracy • CIP/SIP ReadyCore Technical Spe
Semi-Automatic 200L Liquid Filling System for Daily Chemicals
Precision Engineered for Cosmetics ? Detergents ? Sanitizers ? ±0.15% Accuracy ? CIP/SIP Ready
| Parameter | CF-210 (Standard) | CF-220X (ATEX) | CF-230P (Pharma-Grade) |
|---|---|---|---|
| Capacity | 200L (±0.15%) | 200L (±0.2%) | 200L (±0.1%) |
| Throughput | 40 Drums/Hour | 36 Drums/Hour | 32 Drums/Hour |
| Accuracy | ±0.15% Gravimetric | ±0.2% | ±0.1% |
| Viscosity Range | 50-500,000 cP | 100-300,000 cP | 10-1,000,000 cP |
| Filling Technology | Servo Piston + Coriolis Meter | ATEX Gear Pump | Peristaltic Pump (FDA) |
| Material Contact | 316L SS (Ra<0.8μm) | Hastelloy C276 | Glass-Lined Path |
| Drip Control | Laser-Cut Capillary Break | Spring-Loaded Nozzle | Vacuum Suction (-0.8bar) |
| Cleaning System | CIP 20-min Cycle | Solvent Purge | SIP/CIP 15-min Cycle |
| Container Handling | Manual Loading + Auto-Positioning | Same + Explosion-Proof Gripper | VHP Sterilization Tunnel |
| Sealing | Torque-Control Lid Applicator (30-100 N·m) | Same | Aseptic RTP Closure |
| Power | 380V/50Hz, 7.5kW | 24VDC Ex ia | 380V/50Hz, 6.8kW |
| Certifications | CE, ISO 9001 | ATEX Zone 2 | FDA 21 CFR 210/211 |
Performance Validation:
| Chemical | Viscosity | Fill Variance | Residual |
|---|---|---|---|
| Shampoo | 20,000 cP | ±0.12% | <0.05L |
| Disinfectant | 800 cP | ±0.08% | <0.03L |
| Lotion | 80,000 cP | ±0.17% | <0.08L |
| Component | Hygienic Innovation | Certification |
|---|---|---|
| Quick-Change Nozzle | Tool-Free Magnetic Coupling | EHEDG EL Class I |
| CIP System | 3D Spray Ball Coverage | 3-A Sanitary Standard |
| Surface Finish | Ra<0.8μm Electropolished | FDA CFR 21.175.300 |
Cosmetics & Toiletries
| Challenge | Technology | Benefit |
|---|---|---|
| Foam Control | Vacuum-Assisted Submerged Filling | 0% Air Entrapment |
| Fragrance Preservation | N? Blanketing (O?<0.1%) | 100% Scent Integrity |
| Color Consistency | In-line Spectrophotometer | ΔE<0.3 (CIELab) |
Household Chemicals
Corrosion Protection:
Static Control:
| Feature | Specification |
|---|---|
| Ionized Air Curtain | 10? ions/cm3 Output |
| Conductive Hoses | Surface Resistivity <10? Ω |
Pharmaceutical-Grade
| cGMP Compliance | Technical Solution |
|---|---|
| Data Integrity | 21 CFR Part 11 Audit Trail |
| Material Traceability | RFID/NFC Tracking |
| Sterility Assurance | VHP Sterilization (SAL 10??) |
**7" HMI with ChemiOS?**
AI-Driven Features:
Quality Sentinel:
| Parameter | Action |
|---|---|
| pH Shift >0.5 | Flow Pause + Alert |
| Density Variance >1% | Formula Recalibration |
Preventive Maintenance:
| Component | Alert Threshold |
|---|---|
| Seal Wear | Friction >8N |
| Pump Efficiency | Flow <95% Baseline |
1. Manual Drum Loading → 2. Laser Positioning (±1mm) → 3. Nitrogen Purging (O?<0.3%) → 4. Submerged Filling (±0.15%) → 5. Auto Nozzle Retract → 6. Torque-Sealing (50 N·m) → 7. Weight Verification → 8. Roller Conveyor Discharge
Cycle Time: 90 seconds/drum
Industrial-Grade Precision:
? Triple-Seal Containment: | **Layer**| **Technology**| **Performance**| |---------------------|--------------------------|------------------------| | Primary Seal | PTFE Bellows Seal | <10?? mbar·L/s Leak Rate | | Secondary Barrier | Lip Seal + Spring | 0ppm VOC Emission| | Tertiary Defense| Vacuum Suction | 0 Splash Containment | ? CIP/SIP Excellence: 1. 360° Spray Coverage 2. ATP<3 RLU Validation 3. 15-min Cycle Time ? Semi-Automatic Efficiency: - 40 Drums/Hour Operator-Assisted - 70% Labor Reduction - 98% Uptime Reliability
? ATEX 2014/34/EU Zone 2 (CF-220X) ? FDA 21 CFR 175.300 ? EHEDG EL Class I ? ISO 9001:2015
Unilever Regional Facility:
"After deploying CF-210 for detergent filling:
Output: 22 → 40 Drums/Hour (+82%)
Spill Reduction: 1.5L/day → 0.02L/day
Accuracy: ±0.8% → ±0.11%
ROI Period: 5.3 months"
