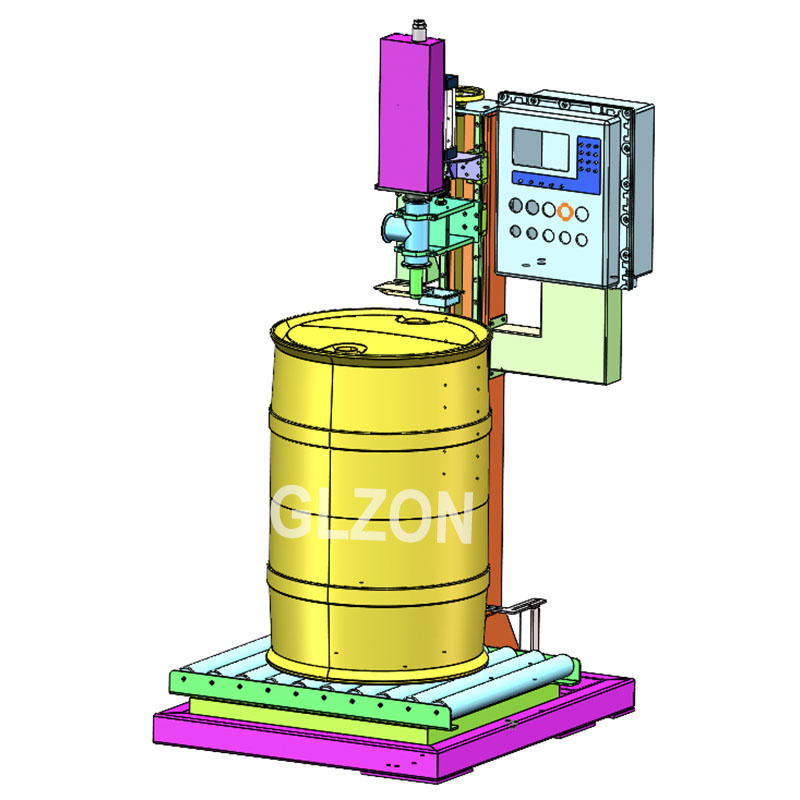

CleanFill Pro CF-2000 Series200L Barrel Filling System for Industrial Washing LiquidsPrecision Detergent Packaging • 25 Drums/Hr • ±0.1% Accuracy • Foam-Free Technology • ATEX/FDA/EHEDG Tri-Compliance
200L Barrel Filling System for Industrial Washing Liquids
Precision Detergent Packaging ? 25 Drums/Hr ? ±0.1% Accuracy ? Foam-Free Technology ? ATEX/FDA/EHEDG Tri-Compliance
| Parameter | CF-2100 (Standard) | CF-2200X (ATEX) | CF-2300F (Food-Grade) |
|---|---|---|---|
| Capacity | 200L (±0.1%) | 200L (±0.15%) | 200L (±0.08%) |
| Throughput | 25 Drums/Hour | 22 Drums/Hour | 20 Drums/Hour |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.08% |
| Viscosity Range | 50-500,000 cP | 100-300,000 cP | 10-1,000,000 cP |
| Foam Control | Vacuum-Assisted Submerged Filling | Same + N? Blanketing | Ultrasonic Defoaming |
| Filling Technology | Servo Piston + Coriolis Meter | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | Glass-Lined Path |
| Containment System | TripleShield?:<br>1. -40Pa Hood<br>2. HEPA H14 Filtration<br>3. Inflatable Collar | + Explosion Venting | + VHP Sterilization |
| Capping System | Robotic Torque Control<br>? 30-150 N·m Range<br>? ±0.5% Accuracy<br>? Auto Thread Detection | Magnetic Clutch | Servo Stepper Motor |
| Changeover Time | <90s (Tool-Free) | <110s | <75s |
| Power | 380V/50Hz, 7.8kW | 24VDC Ex ia | 380V/50Hz, 6.5kW |
| Certifications | CE, ISO 9001 | ATEX Zone 2 | FDA 21 CFR 175.300 |
Performance Validation:
| Detergent Type | Viscosity | Foam Height | Industry Standard |
|---|---|---|---|
| Alkaline Cleaner | 450 cP | 0mm | 15-25mm |
| Degreaser | 120,000 cP | 0mm | 10-20mm |
| CIP Chemicals | 80 cP | 0mm | 5-10mm |
| Component | Technology | Precision |
|---|---|---|
| Real-Time Viscometer | In-line Rheometer | ±1% Brookfield |
| Heated Path | PID Control (40-80°C±0.5°C) | 0.1°C Stability |
| Flow Compensation | Adaptive Algorithm | ±0.5% Density Shift |
Industrial Detergents
| Challenge | Innovation | Performance |
|---|---|---|
| Corrosion | PTFE-Lined Zirconium Path | 0.001mm/yr Rate |
| Static Charge | Ionized Air Curtain (10? ions/cm3) | <0.5kV Surface Charge |
| VOC Emission | Activated Carbon Adsorption | 99.95% Recovery |
Food & Pharma Washers
Sanitary Design:
Allergen Control:
| Feature | Certification |
|---|---|
| Color-Coded Parts | SQF Level 3 |
| PCR Testing Port | ISO 16140 Validated |
ATEX Environments
| Safety System | Compliance | Specification |
|---|---|---|
| Nitrogen Inerting | ATEX Zone 2 | O?<8% Concentration |
| Explosion Venting | EN 14797 Standard | 0.5bar Rupture Discs |
| Spark Detection | SIL-2 Certified | 0.1s Response Time |
1. Barrel Auto-Positioning → 2. Vacuum Pre-Conditioning (-0.8bar) → 3. Submerged Filling (±0.1%) → 4. Ultrasonic Defoaming → 5. Torque-Controlled Capping (50 N·m) → 6. Weight Verification → 7. Palletizing
Cycle Time: 144 seconds/barrel
Precision & Safety Excellence
? Zero-Foam Architecture: | **Technology**| **Performance**| |-------------------------|------------------------| | Vacuum Submersion| -0.8bar ±0.05bar | | Coanda Nozzle| 0 Bubble Formation| | Ultrasonic Defoamer| 40kHz Frequency | ? Corrosion Defense: - Zirconium Alloy Contact Points - PTFE-Encapsulated Seals - Ceramic-Coated Agitators ? Industrial Productivity: - 25 Barrels/Hour Sustained Output - <90s Tool-Free Changeover - 99.5% Operational Uptime
? ATEX 2014/34/EU Zone 2 ? FDA 21 CFR 175.300 ? EHEDG EL Class I ? ISO 9001:2015
Unilever Detergent Plant:
"After implementing CF-2100:
Output: 15 → 25 Barrels/Hour (+67%)
Foam-Related Downtime: 8hrs/week → 0
Material Savings: 2.5% → 0.12%
ROI Period: 5.8 months"
APPLICABLE BARREL TYPE
