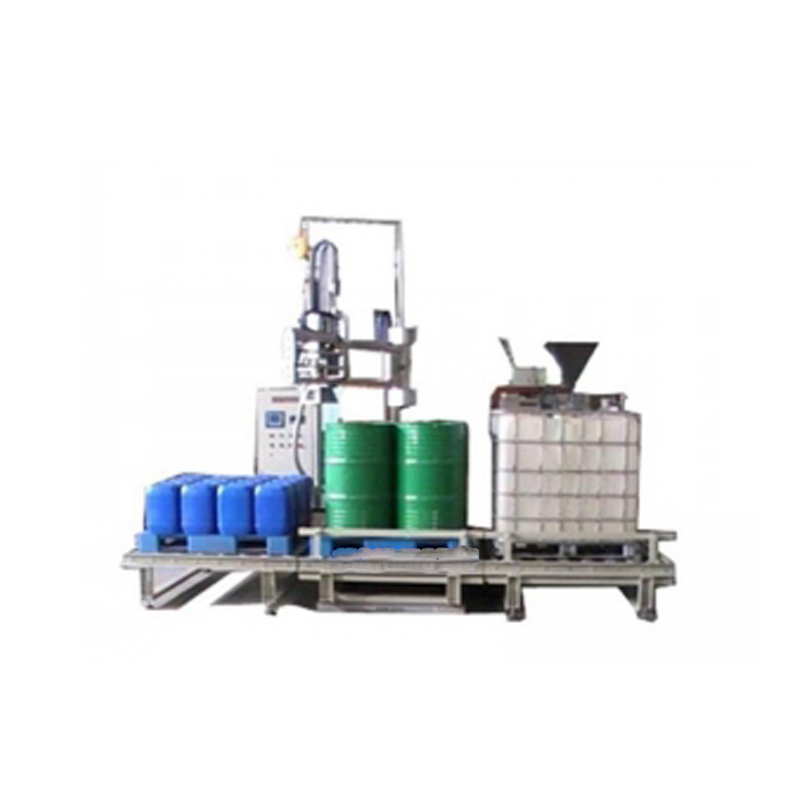

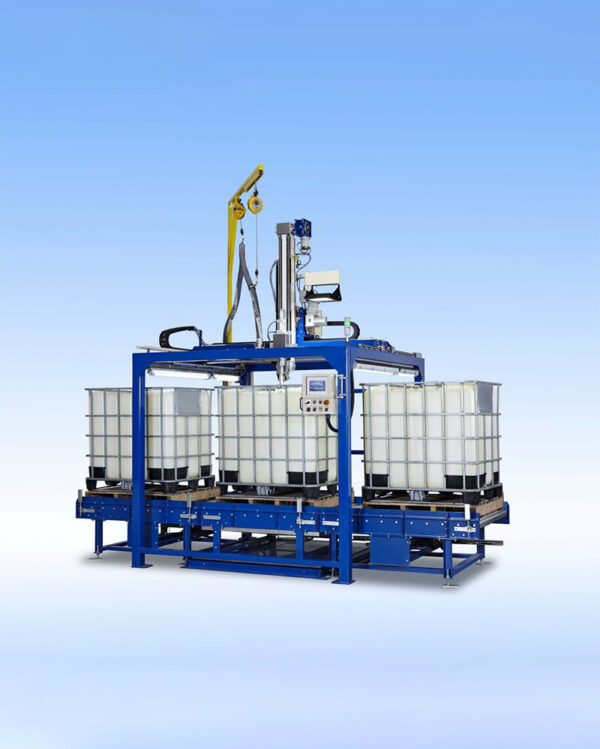

Fully Auto Pallet Filler (IBC/Steel Drum/HDPE Drum)
Guangzhi’s Fully Auto Pallet Filler: Fill & palletize IBCs/drums at 50 drums/hour, ±0.2% accuracy. ATEX/UN/GMP certified. 100% automation.
- Brand： glzon
- Model： GZM_1000L
Product Introduction: Fully Auto Pallet Filler for IBCs/Steel Drums/HDPE Drums
End-to-End Automation for Industrial Bulk Container Handling
Shanghai Guangzhi Automation’s Fully Auto Pallet Filler integrates precision filling, palletizing, and dispatch for IBCs (1,000L), steel drums (200L), and HDPE drums (220L) in a single AI-driven system. Achieving ±0.2% filling accuracy, 18 IBCs/hour (or 50 drums/hour), and ±0.5mm pallet stacking precision, this solution eliminates manual intervention while ensuring ATEX, UN, and GMP compliance for chemicals, food, and pharmaceuticals.
Core Technologies
Multi-Container Intelligence
AI vision auto-detects container type (IBC/drum) and adjusts filling/palletizing parameters.
Quick-change EOAT: Drum claws (steel/HDPE) + IBC twist-lock grippers (swap in <90 sec).
Closed-Loop Filling System
Mass flow meters (±0.2%) with viscosity compensation (1–500,000 cP).
Nitrogen-purged filling lances + vacuum drip recovery (<0.03% loss).
Robotic Palletizing
6-axis robot (1,800 kg payload) builds UN 4G/M2-certified stacks.
Auto-height adjustment for multi-layer palletizing (max 4 IBCs or 6 drums high).
IoT Control Hub
15" HMI with Guangzhi SmartTwin OS: Syncs filling recipes, pallet patterns, and AGV routing.
Predictive maintenance for pumps/robotics.
Explosion-Safe Design
ATEX Zone 1/21 compliance: Pressurized panels, static grounding (<10? Ω).
Technical Specifications
| Parameter | IBC Totes (1,000L) | Steel/HDPE Drums (200L) |
|---|---|---|
| Filling Accuracy | ±0.2% | ±0.25% |
| Throughput | 18 units/hour | 50 units/hour |
| Stacking Accuracy | ±0.5mm (layer alignment) | ±0.8mm |
| Max. Stack Height | 4 layers (2.4m) | 6 layers (3m) |
| Viscosity Range | 1–300,000 cP | 1–200,000 cP |
| Power | 380V/50Hz, 9.5 kW + 0.8 MPa air | |
| Safety Compliance | ATEX II 2G, UN 4H2, ISO 15848 | |
| Footprint (L×W×H) | 10,500 × 6,800 × 5,200 mm |
Integrated Workflow
Container ID: RFID scans drum/IBC → AI selects filling recipe.
Precision Filling: Closed-loop dosing with N? blanketing.
Sealing: Auto twist-lock (IBC) or bung cap (drum).
Palletizing: Robot stacks in pyramid/interlock patterns.
Dispatch: Stretch-wrapped pallet → AGV to warehouse.
Industry Applications
| Industry | Containers Filled | Critical Features |
|---|---|---|
| Chemical | Solvent IBCs, acid drums | ATEX Zone 1 + Hastelloy nozzles |
| Food Processing | Edible oil IBCs, syrup drums | IP69K washdown + USDA materials |
| Pharmaceuticals | GMP intermediate totes | Isolator enclosure + 21 CFR Part 11 |
| Paints/Resins | Pigment drums, epoxy IBCs | Anti-skinning lances |
Operational Advantages
| Feature | Impact |
|---|---|
| Labor Reduction | Replaces 10 workers (24/7 operation) |
| Product Savings | Recovers $55k/year via zero spillage |
| Space Efficiency | 35% smaller than separate systems |
| Stack Stability | 99.9% topple-free (UN certified) |
| ROI Period | 9–14 months |
Safety & Compliance
360° Safety Fence: Laser scanners + interlocked gates (ISO 13849-1 PLd).
Hazard-Specific Upgrades:
Double nitrogen blanket for pyrophorics.
|Spill containment sump (1,000L capacity).Certifications: ATEX, UN, CE, FDA, GMP.
APPLICABLE BARREL TYPE
