GLZON 20L Jerrycan Filling Machine | Lubricant Filling Systems

Model: GZM-25-BAG

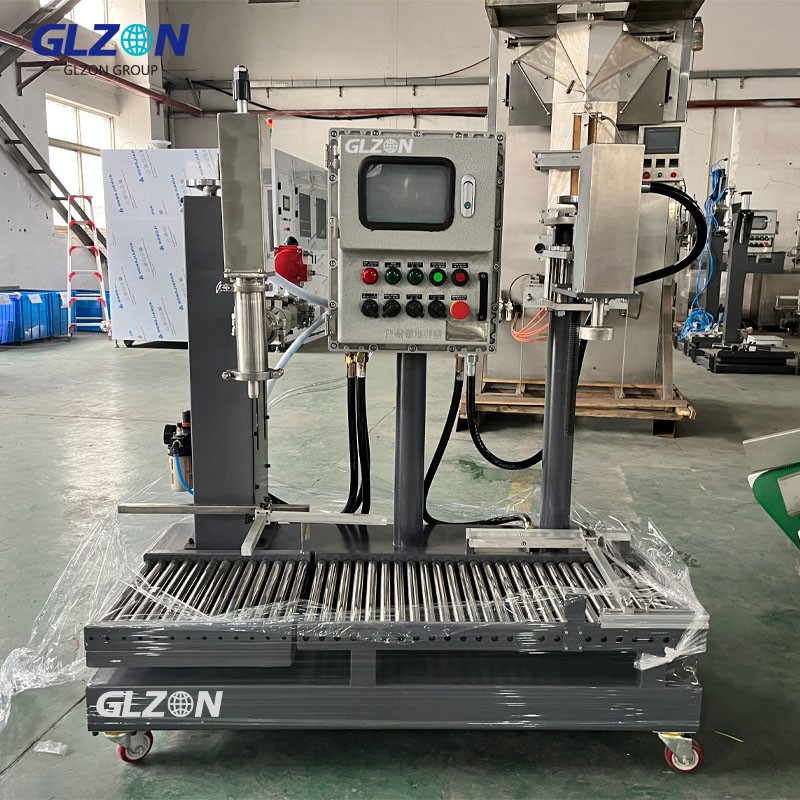

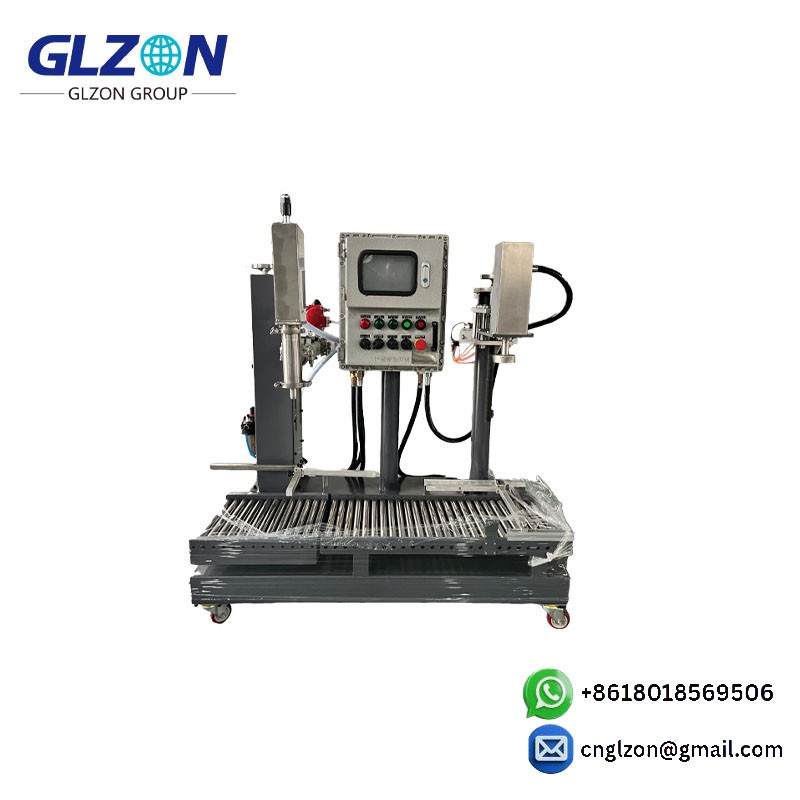

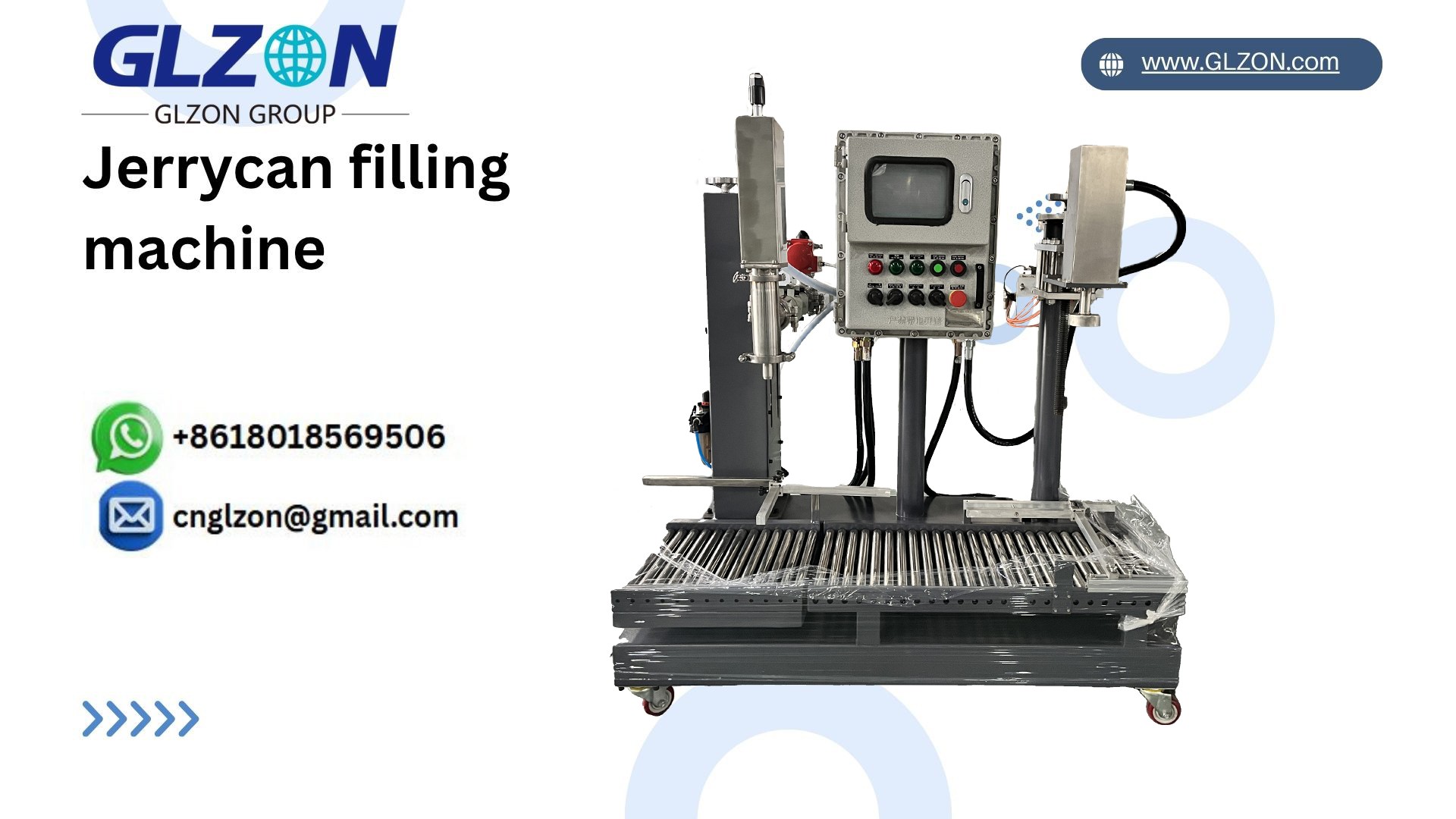

Shanghai Guangzhi Automation Equipment Co., Ltd. proudly introduces the GZM-25-BAG, an advanced 20L Jerrycan filling machine engineered for precision, efficiency, and durability in demanding industrial environments. Designed to handle a wide range of liquids including fluoric acid, lubricants, solvents, pesticides, and coatings this automated filling system combines high-speed operation with exceptional accuracy, making it an ideal solution for chemical, pharmaceutical, food, and military applications.

Key Features and Benefits

The GZM-25-BAG stands out with its anti-corrosion construction, featuring PPH and Teflon material contact parts to ensure resistance against aggressive chemicals such as fluoric acid and solvents. Its insertion filling technology eliminates splashing and dripping, while the dual-speed filling system enhances precision (±10g accuracy) by employing a fast initial fill followed by a slow, controlled topping phase. The machine's one-touch operation simplifies workflow users only need to align the Jerrycan, press the start button, and let the system handle auto-peeling, filling, and lifting. Additional safety features include an emergency stop button and nitrogen blanketing to prevent oxidation, ensuring both operator safety and product integrity.

Technical Specifications

With a maximum weighing capacity of 40kg and a filling speed of 150–300 barrels per hour, the GZM-25-BAG is built for high-efficiency production lines. It operates within a temperature range of -10°C to 100°C and requires an air pressure supply of 0.6MPa, making it adaptable to various industrial settings. The machine supports multiple container types, including 5-gallon and 3-gallon Jerrycans, metal cans, and PVC containers, ensuring versatility across different applications.

Industry Applications

This automated Jerrycan filler is widely used in:

• Chemical Manufacturing: For filling solvents, PVC solvents, coatings, pesticides, and herbicides.

• Lubricant and Oil Production: Ideal for lubricant oil bottles, gear oils, and hydraulic fluids.

• Food and Pharmaceutical Industries: Suitable for glycerin, syrups, and liquid ingredients.

• Military and Industrial Sectors: Efficiently handles fuel and specialized liquid storage in Jerrycans.

Why Choose the GZM-25-BAG?

As a trusted Jerrycan filling machine manufacturer, Shanghai Guangzhi ensures reliability through premium components, including Siemens PLC, Schneider electrics, SICK sensors, and AirTac pneumatic systems. The machine's stainless steel frame, PTFE seals, and corrosion-resistant design guarantee long-term durability with minimal maintenance. Customizable for different can sizes (20L, 25L, 5-gallon, and 3-gallon), the GZM-25-BAG offers flexibility to meet diverse production needs.

Contact Us for a Custom Solution

We provide competitive pricing, global shipping, and dedicated after-sales support for businesses seeking a high-performance 20L carboy can liquid filling machine. Whether you require a system for lubricants, solvents, pesticides, or paints, our expertise ensures a tailored solution for your production line.

Upgrade to a precision-engineered, automated Jerrycan filling machine designed for efficiency and reliability.
