Fully Auto Paint Filler is designed with 2 filling nozzles, high precision weighing scale, pneumatic system, programmable logic controller, palletized system, pail dispenser system, lug cover dispense
Precision Stacking for 5–60L Pails, Drums & Buckets

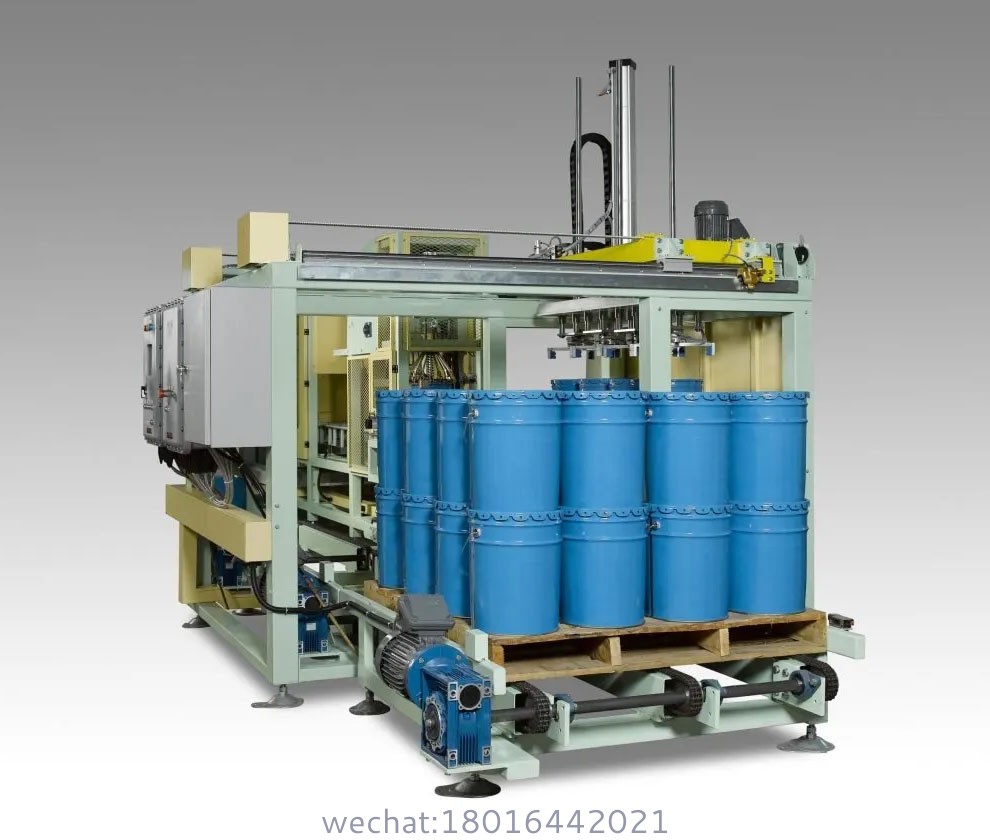

The Guangzhi PailStack RPP-3000 automates palletizing of filled pails (steel/plastic), drums, and square buckets at 15–25 layers/hour with ±0.5mm placement accuracy. Featuring 3D vision-guided robotics and adaptive grippers, it handles diverse formats (round/rectangular) while minimizing floor space with vertical-mast design.
| Challenge | RPP-3000 Solution |
|---|---|
| Container Slippage | AI-predictive grip force control + anti-skid pads |
| Mixed Pallet Patterns | Auto pattern generator (pinwheel, interlocked) |
| Space Constraints | Vertical Z-axis (saves 40% floor area) |
| Product Damage | Soft-touch vacuum/mechanical hybrid gripper |
| Parameter | Specification |
|---|---|
| Capacity | 200–500 pails/hour (20L standard) |
| Max Payload | 80 kg/gripper (dual-grip: 160 kg) |
| Container Size | Diameter: 200–400 mm; Height: 200–600 mm |
| Pallet Size | 800×1,200 mm to 1,200×1,800 mm |
| Placement Accuracy | ±0.5 mm (laser-guided) |
| Gripper Options | Vacuum (smooth lids) / Clamp (chimes) / Hybrid |
| Robot Reach | 2,800 mm (radial) |
| Power | 480V/60Hz, 6.8 kW |
Vision System: 3D camera scans pail orientation + pallet deformations
Layer Height Detection: Ultrasonic sensor auto-adjusts for uneven fills
Pallet Conveyance: Roller + chain transfer (1,500 kg capacity)
Safety Enclosure: Laser scanners (ISO 13849 PLd) + emergency stops
HMI Interface: 10" touchscreen with pattern library (50+ presets)
| Metric | RPP-3000 | Manual Stacking | Savings |
|---|---|---|---|
| Throughput | 480 pails/hour | 80 pails/hour | 6× faster |
| Labor | Unattended | 3 workers | 100% reduction |
| Product Damage | <0.1% | 1.5–3% | 97% reduction |
| Floor Space | 3.2 × 3.5 m | 8 × 10 m | 86% smaller |
Paints & Coatings: 5–20L steel pails (UN 1A2/Y1.4)
Food Processing: Food-grade plastic pails (HDPE/PP)
Chemicals: UN-certified drums with clamp rings
Adhesives: Square buckets (stack-nest design)
? Zero Format Changeover: Auto-adjusts to pail size/shape in <15 sec
? All-Weather Operation: IP65 rating for humid/washdown environments
? Pallet Integrity Monitoring: Rejects unstable layers pre-stretch wrap
? Seamless Integration: MODBUS/TCP, OPC-UA, SAP EWM compatibility
Ex-Proof Kit: ATEX Zone 2/22 (for solvent-filled pails)
Auto Stretch Wrapper: Integrated turntable wrapper
Barcode Scanner: Pallet-ID verification
Heavy-Duty Gripper: For 60L drums (up to 150 kg)
